PROTOTYPING SHIELD
PROTOTYPING SHIELD FOR UNO
Category
Subcategory
EDM - Mechanical: Connectors, pins, Fuse, Switches, Keys, BlanK PCB
Description

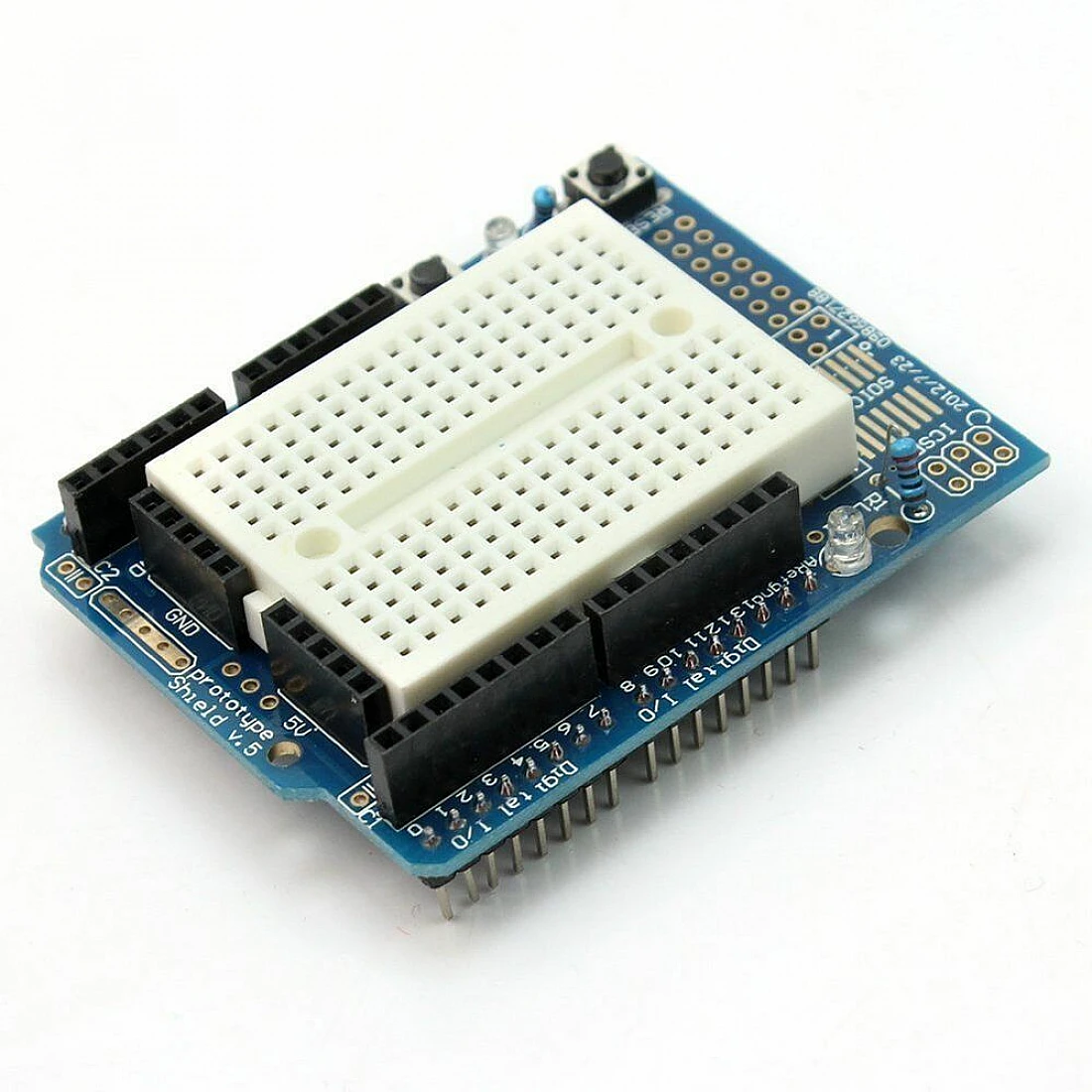

Arduino Uno Protoshield directly fits into an Arduino UNO board and breaks out the I/O pins and makes it an expansion board. It makes it very easy to design any customer circuit. You can directly solder components on the board or connect the circuit using 170 point mini breadboard (included). The board is designed to solder both through-hole and SMD components to test them with your Arduino board. Although the SMD area is designed for 24 Pins SOIC integrated circuit and has a lot of space for TH components.
Manufacturer Details
| Manufacturer | Part Number |
|---|---|
| Arduino | A000080 |
| Keyes | KY-006 Shield |
| DFRobot | DFR0019 |
| Seeed Studio | Proto Shield V2 |
| Generic | UNO-PROTO-SHIELD |
Vendor Suppliers
Application Resources
Technical Specifications
| Breadboard Points | 170 |
| Breadboard Size | 4.8×3.4 cm |
| Shield Size | 7×5.4 cm |
