Flex Sensor
Category
Subcategory
EDS - Integrated Semiconductors: Chips (with more than a transistor)
Description

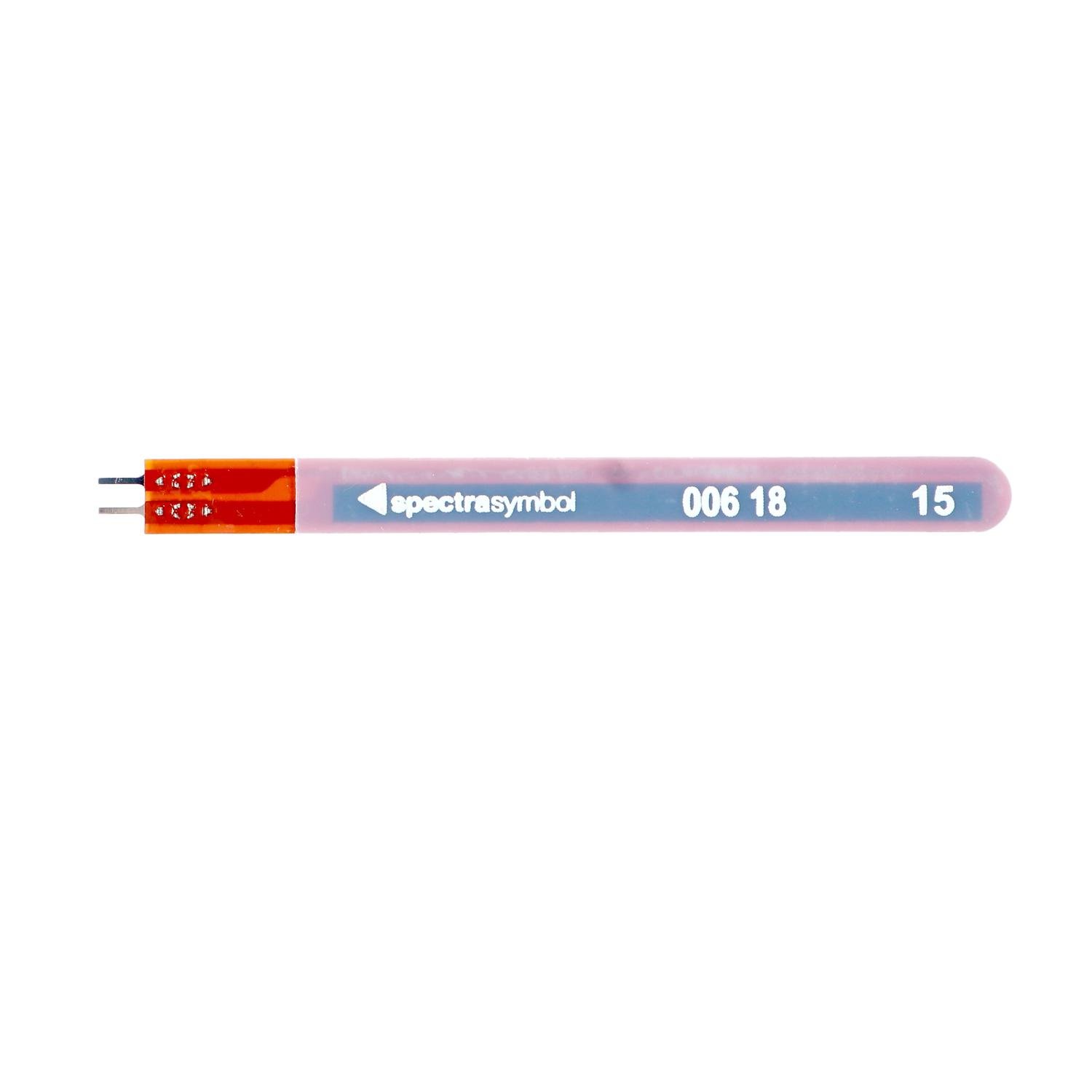

A simple Flex Sensor 2.2″ – Bend Sensor with a length of 2.2″ which bends and flexes with a physical device. As the sensor is flex, the resistance across the sensor increases. A connector is 0.1″ spaced and breadboard friendly. The flex sensor is a bend detecting sensor that has got numerous applications in Robotics, Gaming (Virtual Motion), Medical Devices, Computer Peripherals, Musical Instruments, Physical Therapy... The resistance of these sensors changes in accordance with the bend, which can be measured using any microcontroller.
Manufacturer Details
| Manufacturer | Part Number |
|---|---|
| Spectra Symbol | SEN-10264 |
| SparkFun | SEN-10264 |
| Adafruit | 1070 |
| Interlink Electronics | FSR402 |
| Generic | FLEX-2.2IN |
Vendor Suppliers
| Vendor | SKU | Link |
|---|---|---|
| No listings | ||
Application Resources
Project Codes
No project codes.
Technical Specifications
| Bend Resistance | minimum 20K Ohms ±30% (@ 180° pinch bend) |
| Flat Resistance | 10K Ohms ±30% |
| Flex length | 2.2 inch (5.6 cm) |
| Power | 0.5 Watts continuous |
| Length | 7 cm |
