7 Segment Display

Numeric LED display

Subcategory
EDD - Discrete Semiconductors: Diodes, Transistors, LDR, LED

Description

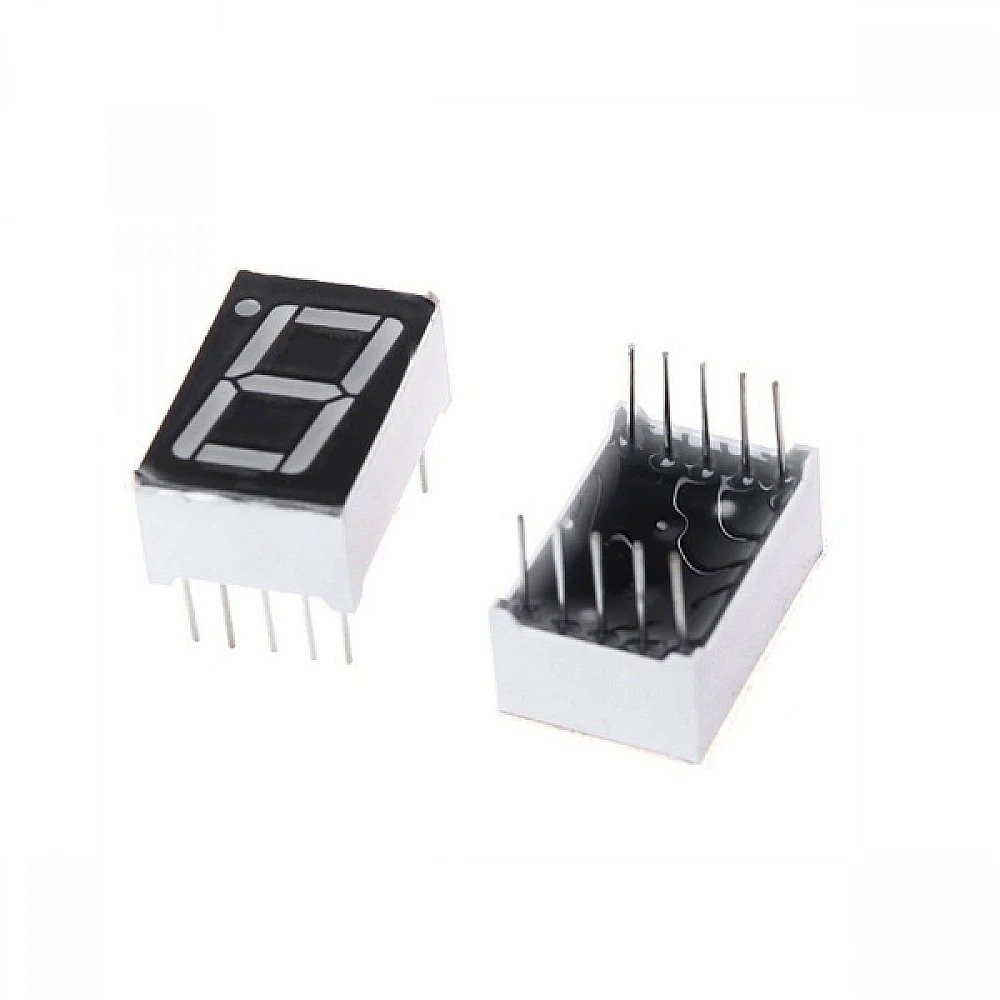

The 0.56” 1-Digit 7-Segment LED Display is a single-digit numeric display (0–9) using seven LED segments. It has a common cathode configuration with bright visibility. It is widely used in counters, clocks, meters, Arduino projects, and embedded systems.

Manufacturer Details

Manufacturer Part Number
Lite-On Technology 5161AS
Kingbright SC56-11EWA
Generic / OEM 0.56-1D-CC-RED

Technical Specifications

Model 7 Segment LED Display
Digit Count 1 Digit
Display Size 0.56 Inch
Configuration Type Common Cathode
Emitting Color Red
Face Color Black
Number of Pins 10
Forward Voltage (V) 1.8 – 2.2 (Typical for Red LED)
Forward Current (mA) 20 (Typical)
Mounting Type PCB Through Hole
Characteristics High Brightness, Low Current Consumption, Easy to Use
Length (Inch) 0.56
Shipping Weight 0.02 kg
Shipping Dimensions (L × W × H cm) 6 × 4 × 2

Part Family Variants (2)

Variant Title Status
EDD-00004-A Current 7 Segment Display Published
EDD-00004-B 7 Segment Display Published
