Toggle Switch DPDT

EDM-00003-A

(Last updated) Jun 20, 2026

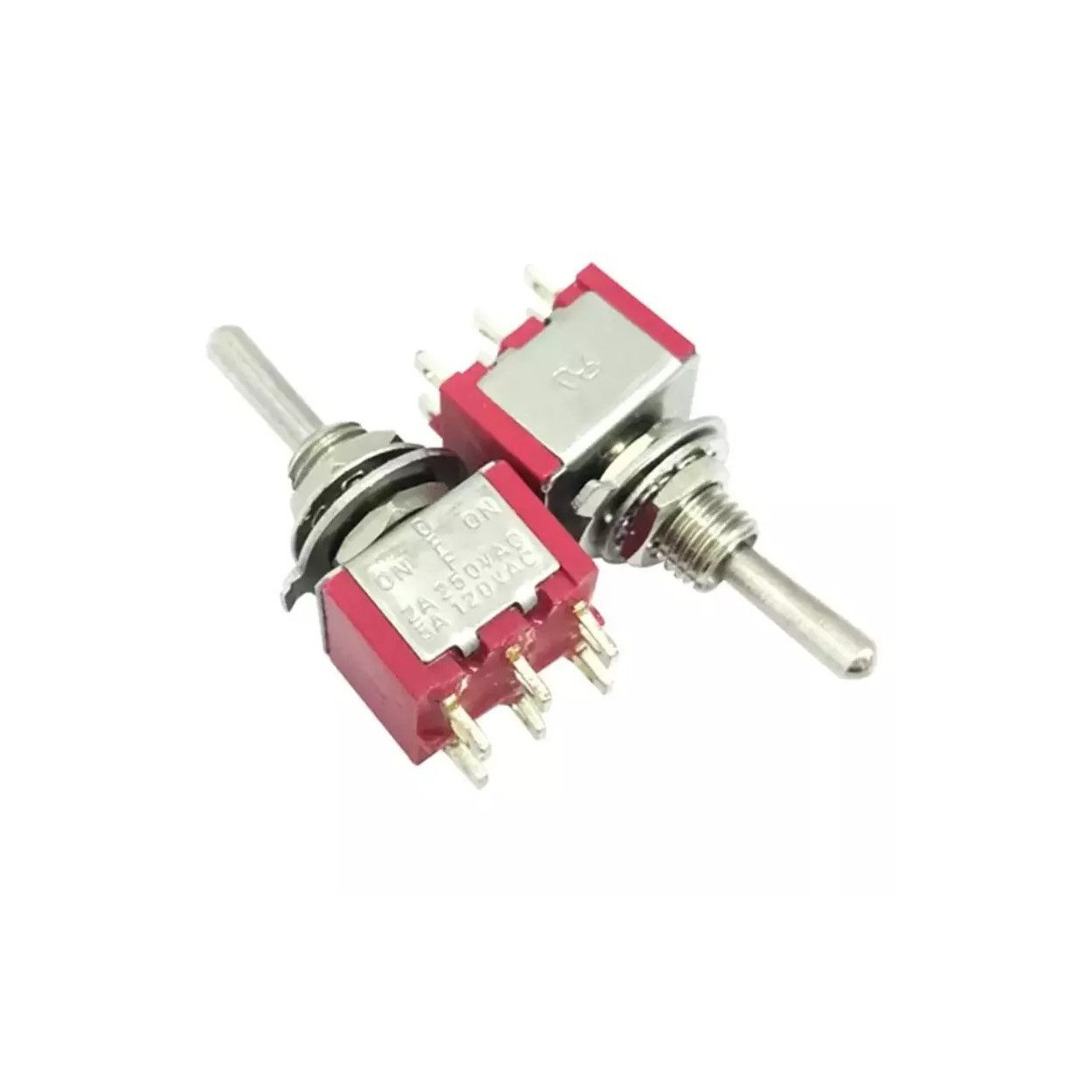

DPDT Toggle Switch

Dual circuit control switch.

Subcategory
EDM - Mechanical: Connectors, Pins, Fuses, Switches, Keys, Blank PCB

Description

The DPDT (Double Pole Double Throw) Toggle Switch is a mechanical switch used to control two separate circuits and switch each between two output paths. It is commonly used for polarity reversal, motor direction control, signal routing, power selection, automation, robotics, and DIY electronics projects.

Manufacturer Details

Manufacturer Part Number
C&K 7103 Series
E-Switch 100 Series DPDT
Omron A8 Series

Technical Specifications

Switch Type DPDT (Double Pole Double Throw)
Number of Pins 6 Pins
Rated Voltage 125V – 250V AC / 12–30V DC
Rated Current 3A – 6A
