EDM-00002-A

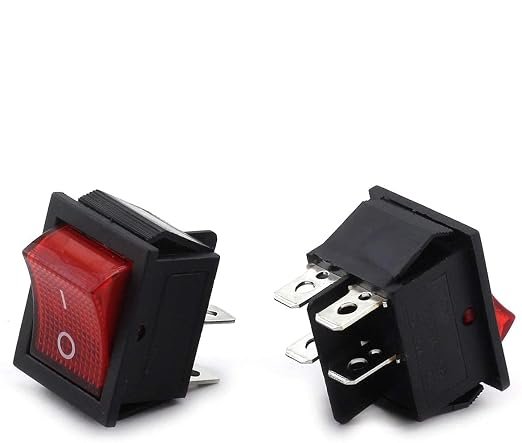

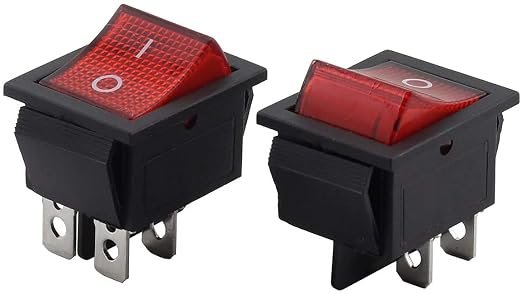

Power switch
ON/OFF power control switch
Description
Vendor Suppliers
Technical Specifications
| Switch Type | SPST (Single Pole Single Throw) |
| Rated Voltage | 125V – 250V AC / 12–24V DC |
| Rated Current | 3A – 10A |
Part Family Variants (2)
| Variant | Title | Status |
|---|---|---|
| EDM-00002-A Current | Power switch | Published |
| EDM-00002-B | Power switch | Published |
