EDT-00002-A
(Last updated) Jun 04, 2026

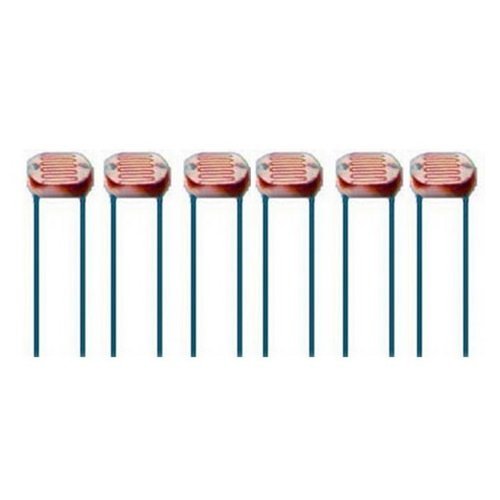

Light Detecting Resistor Device
LDR Device
Category
Subcategory
EDT - Electronic Device Transducer
Description
Light sensitive resistor device used to detect light intensity by changing resistance according to surrounding light conditions.
Manufacturer Details
| Manufacturer | Part Number |
|---|---|
| Advanced Photonix | PDV-P8104 |
| Token Electronics | GL5528 |
| Excelitas Technologies | VT90N2 |
| Luna Optoelectronics | NSL-19M51 |
Application Resources
No application resources.
Technical Specifications
| Operating Voltage | 3.3V – 5V |
| Sensor Type | Light Dependent Resistor |
| Output Type | Analog Resistance Output |
| Resistance Range | 200Ω – 1MΩ |
