EDR-00002-20K0
(Last updated) Jun 05, 2026

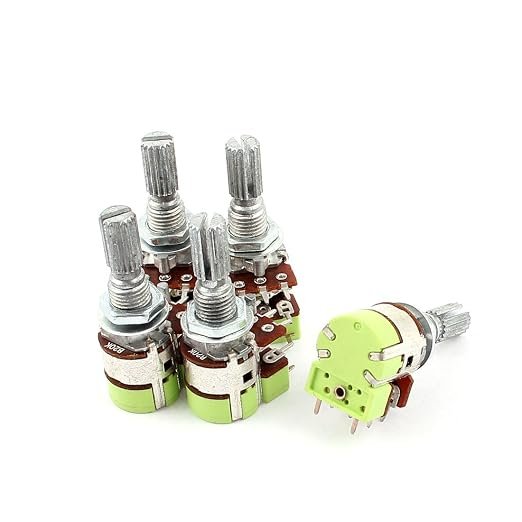

Potentiometer
Potentiometer (20KOhm, linear)
Category
Subcategory
EDR - Passives: Resistors (XXX= TECH/PACKAGE TYPE), (Z=OHM, K=KILO OHM, M=MEGA OHM)
Description
20KΩ linear potentiometer designed for adjustable resistance control in electronic circuits, embedded systems, and analog signal applications. It provides smooth variable resistance output for controlling voltage levels, sensor calibration, audio control, and microcontroller analog input tuning.
Manufacturer Details
| Manufacturer | Part Number |
|---|---|
| Bourns | 3386P-1-203 |
| Panasonic | EVU-F Series |
| Alps Alpine | RK09 Series |
Vendor Suppliers
Application Resources
No application resources.
Technical Specifications
| Resistance Value | 20KΩ |
| Type | Linear Potentiometer |
| Tolerance | ±10% (typical) |
| Power Rating | 0.1W – 0.5W |
| Rotation Angle | ~270° |
Related Components in ED - Electronic Device
ED - Electronic Device
EDT-00004-A

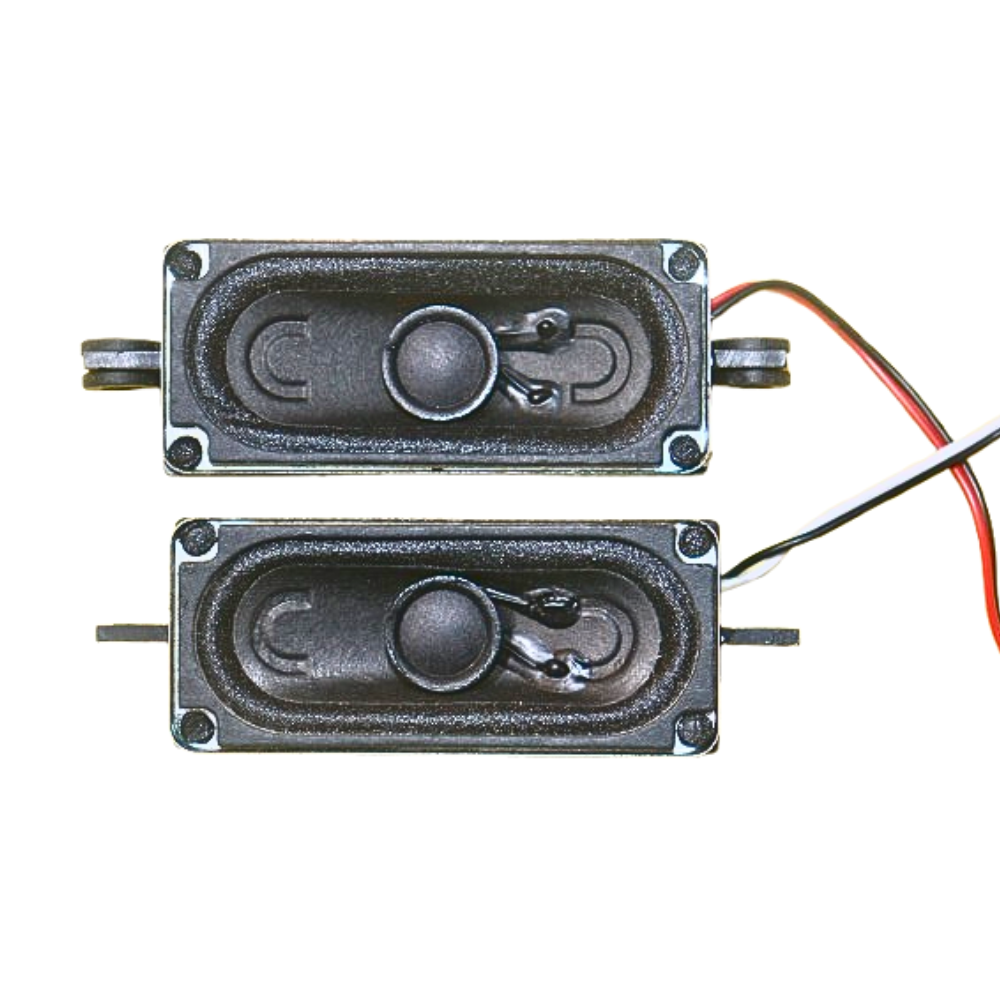

SpeaKers
