EDR-00001-330Z
(Last updated) May 09, 2026

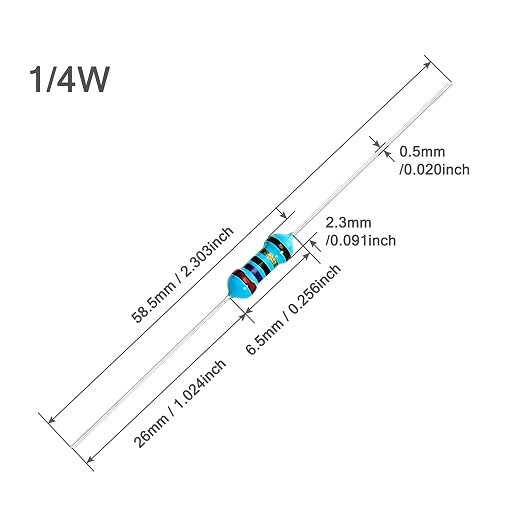

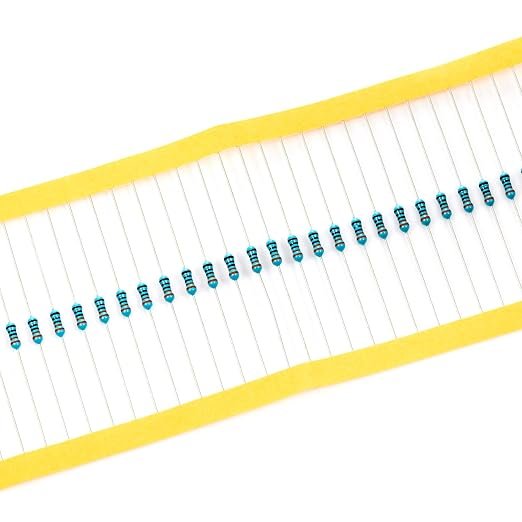

Resistor - 330 Ohm
0.25W Resistor - 330 Ohm
Category
Subcategory
EDR - Passives: Resistors (XXX= TECH/PACKAGE TYPE), (Z=OHM, K=KILO OHM, M=MEGA OHM)
Tags
—
Description
It is a 330 Ohm 0.25W Metal Film Resistor. This resistor is for through-hole applications.
Manufacturer Details
| Manufacturer | Part Number |
|---|---|
| Yageo | CFR-25JR-52-330R |
| Vishay | CFR25J330R |
| KOA Speer | CFR25J330R |
| TE Connectivity | CFR25J330R |
| Generic | 330R-0.25W-CF |
Application Resources
Technical Specifications
| Series | – |
| Resistance (Ohm) | 330 |
| Tolerance (%) | 1 |
| Power Rating | 250mW |
| Composition | Metal Film |
| Temperature Coefficient | +/-50ppm/°C |
| Operating Temperature (°C) | -40 ~ 150 |
| Case/Package | Axial |
| Length (mm) | 6 |
| Mounting Type | Through Hole |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 1 × 1 × 1 cm |
