EMS-00014-A
Tested by Z2M
Touch Detector
Description

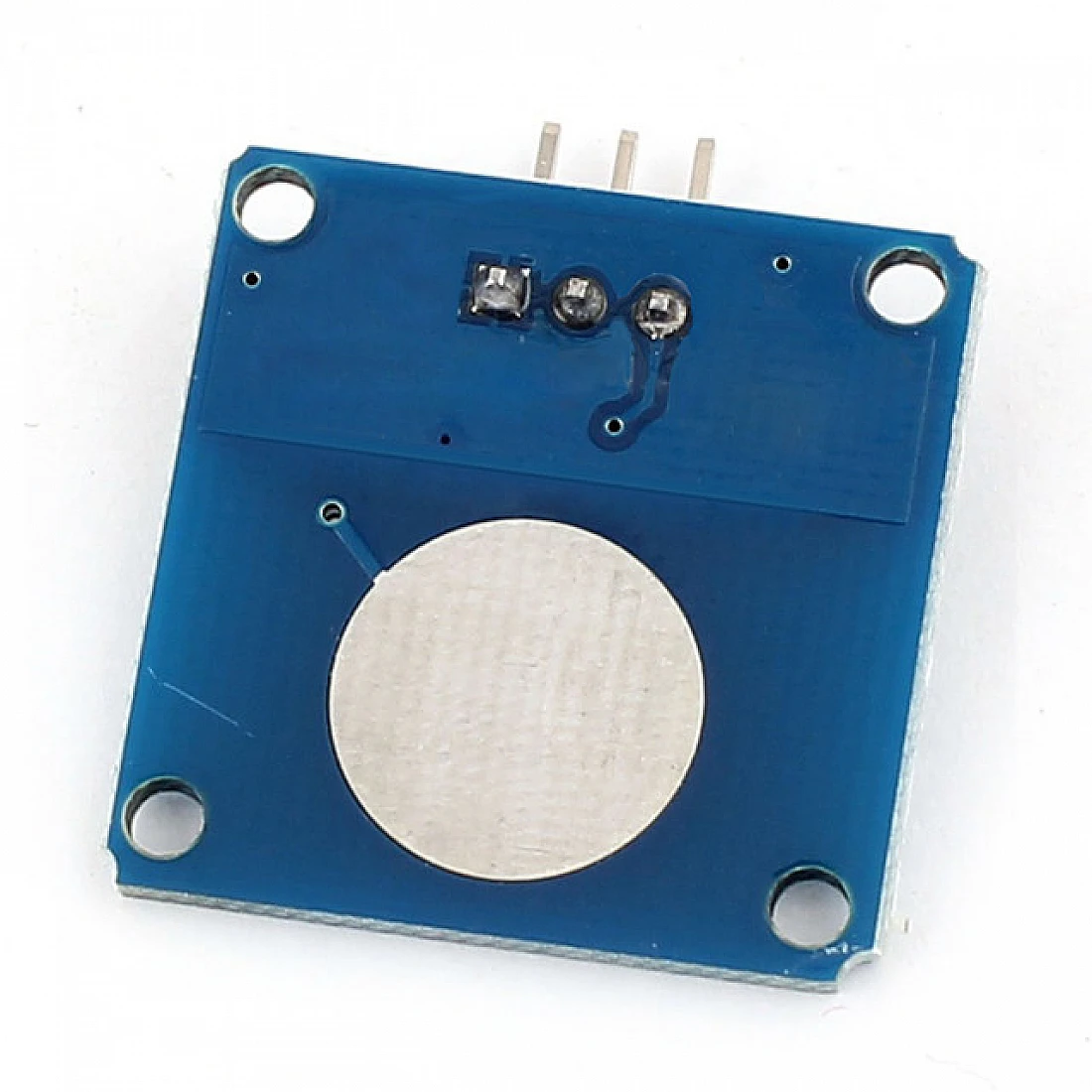

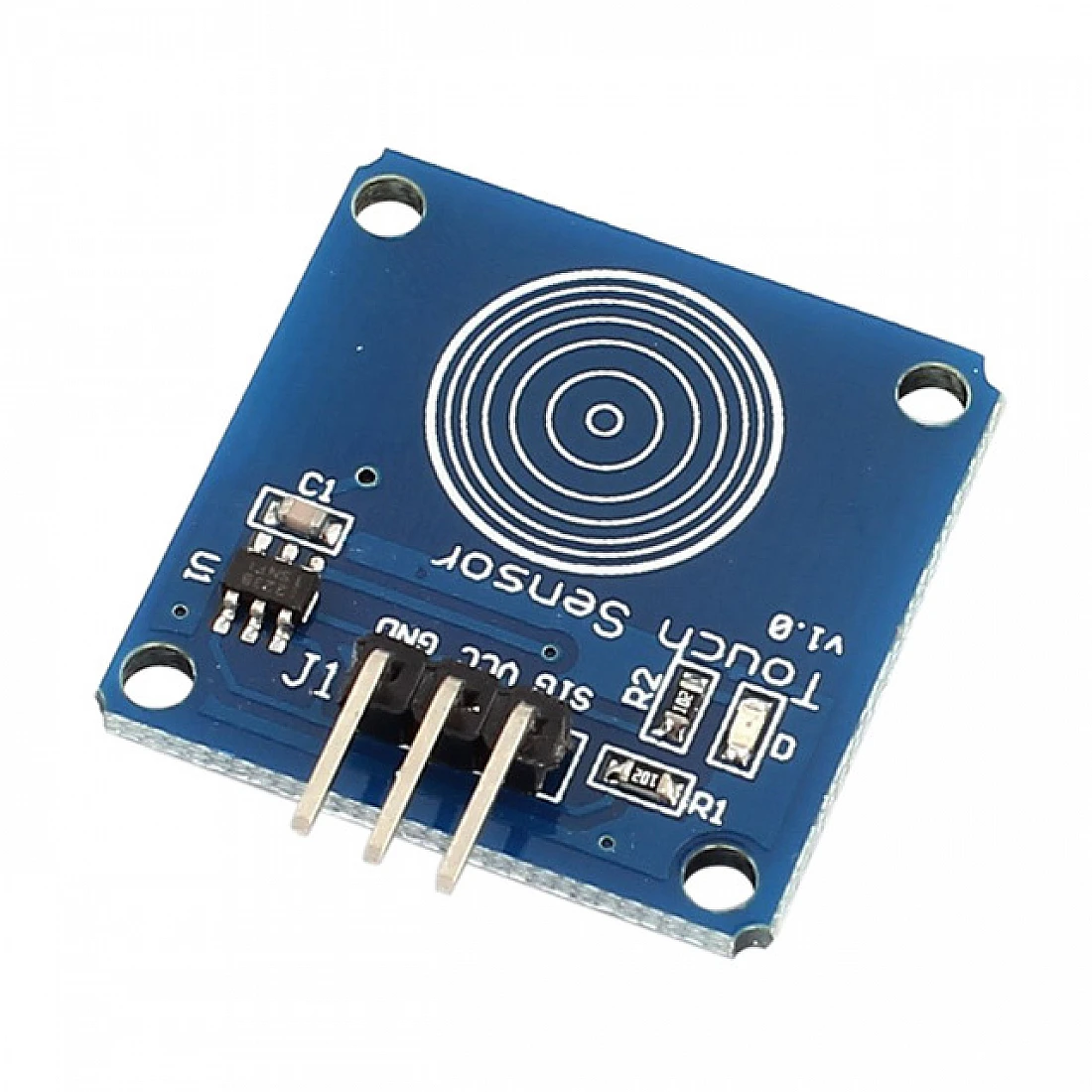

TTP223B Capacitive Touch Key Sensor Module is based on a touch-sensing IC capacitive touch switch module. It allows you to remove the worry of conventional push-type keys.

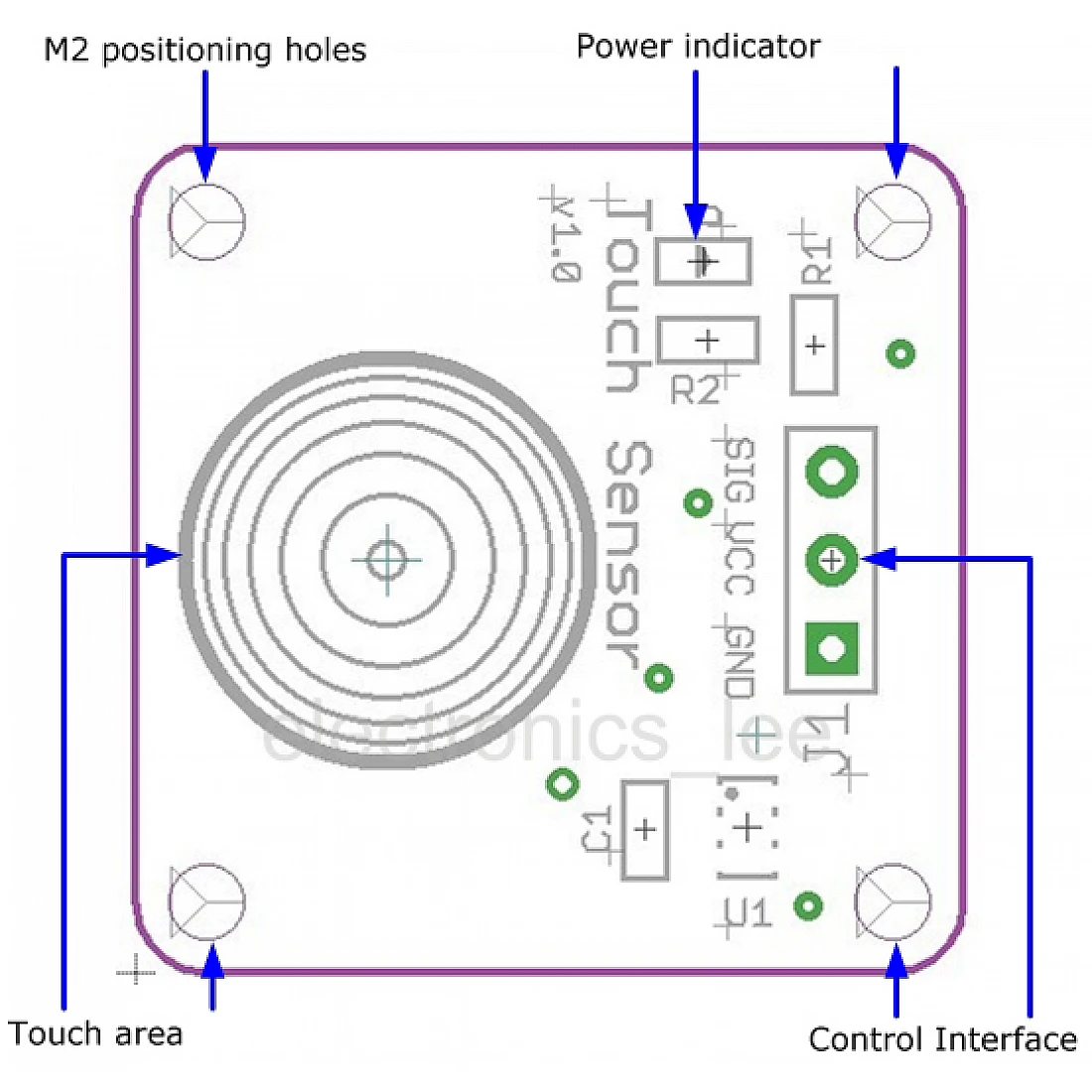

Digital Capacitive Touch Switch Module is based on TTP223B. Normally, it outputs low and keeps at a low power state. When a touch is sensed on the circular marked region, it outputs high and switches to the quick response state. When not being touched for 12 seconds, it switches to a low power state again.
In addition to the thin paper ( non-metallic ) covering the surface of the module, as long as the correct location of the touch, you can make it hidden in the walls, desktops, and other parts of buttons.
Manufacturer Details
| Manufacturer | Part Number |
|---|---|
| Tontek Design Technology | TTP223B |
| Shenzhen Tontek (Tontek IC) | TTP223B |
| Generic Module Manufacturer | TTP223B |
| Waveshare (Module Vendor) | TTP223B |
| Keyestudio (Arduino Vendor) | KS-TTP223 |
Vendor Suppliers
| Vendor | SKU | Link |
|---|---|---|
| No listings | ||
Application Resources
Project Codes
Technical Specifications
| Item Type | Electronic Switch |
| Model | Touch Switch |
| IC Chip | TTP223B |
| Operating Voltage | 2V – 5.5V |
| Output High (VOH) | 0.8 × VCC |
| Output Low (VOL) | 0.3 × VCC |
| Response Time (Low Power Mode) | 220 ms |
| Response Time (Touch Mode) | 60 ms |
| Length | 24 mm |
| Width | 24 mm |
| Height | 2 mm |
| Weight | 0.6 g |
| Shipping Weight | 0.085 kg |
| Shipping Dimensions | 3 × 3 × 1 cm |
