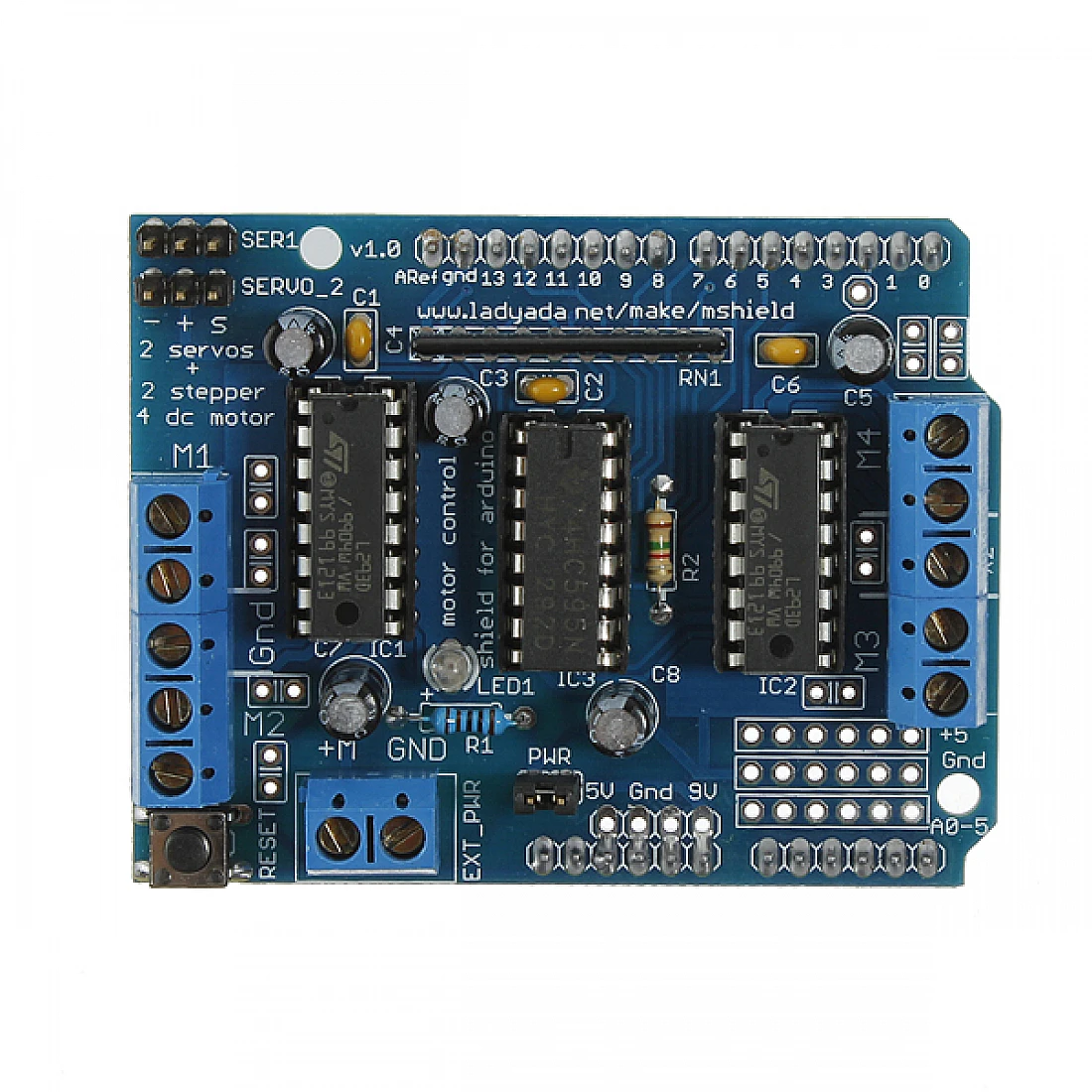

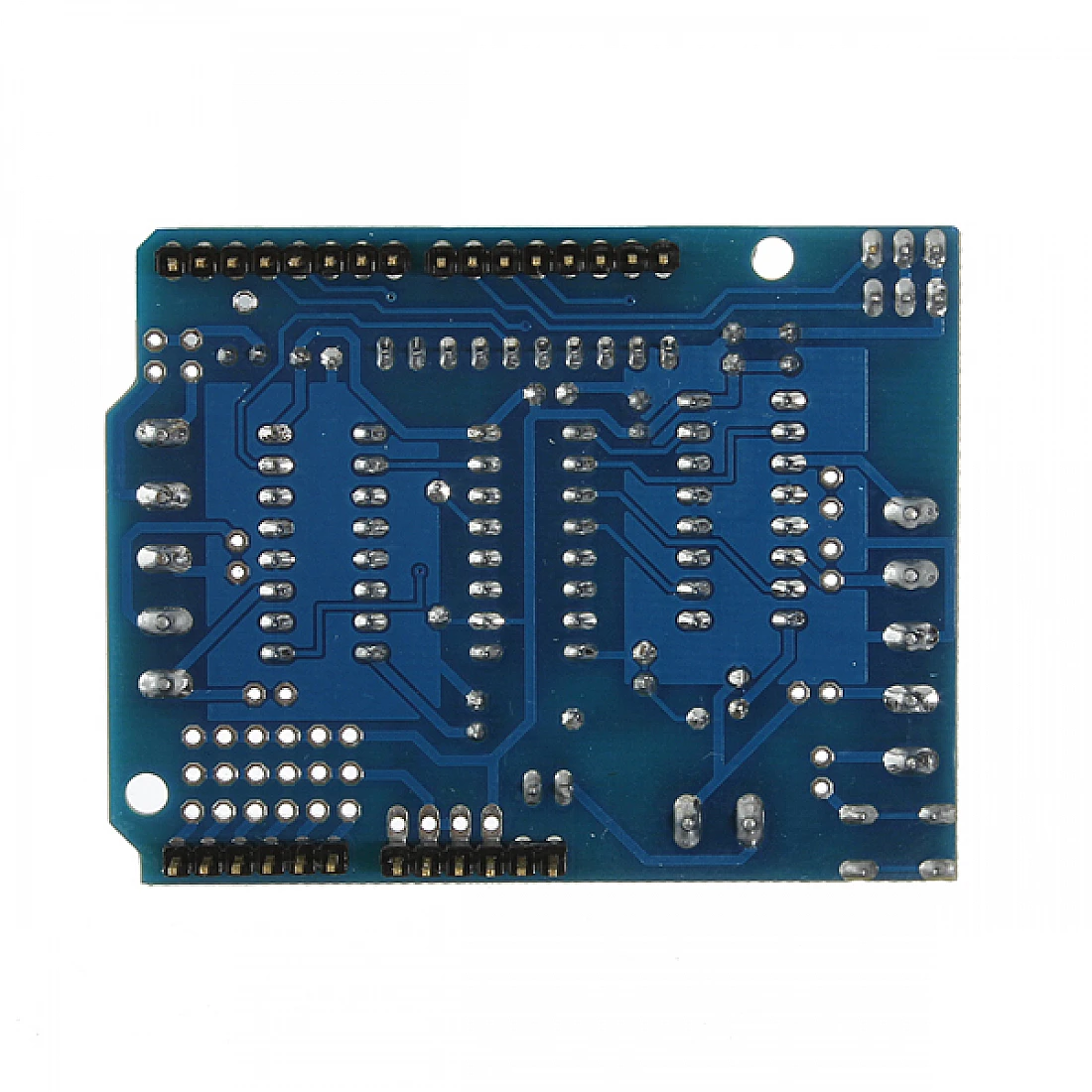

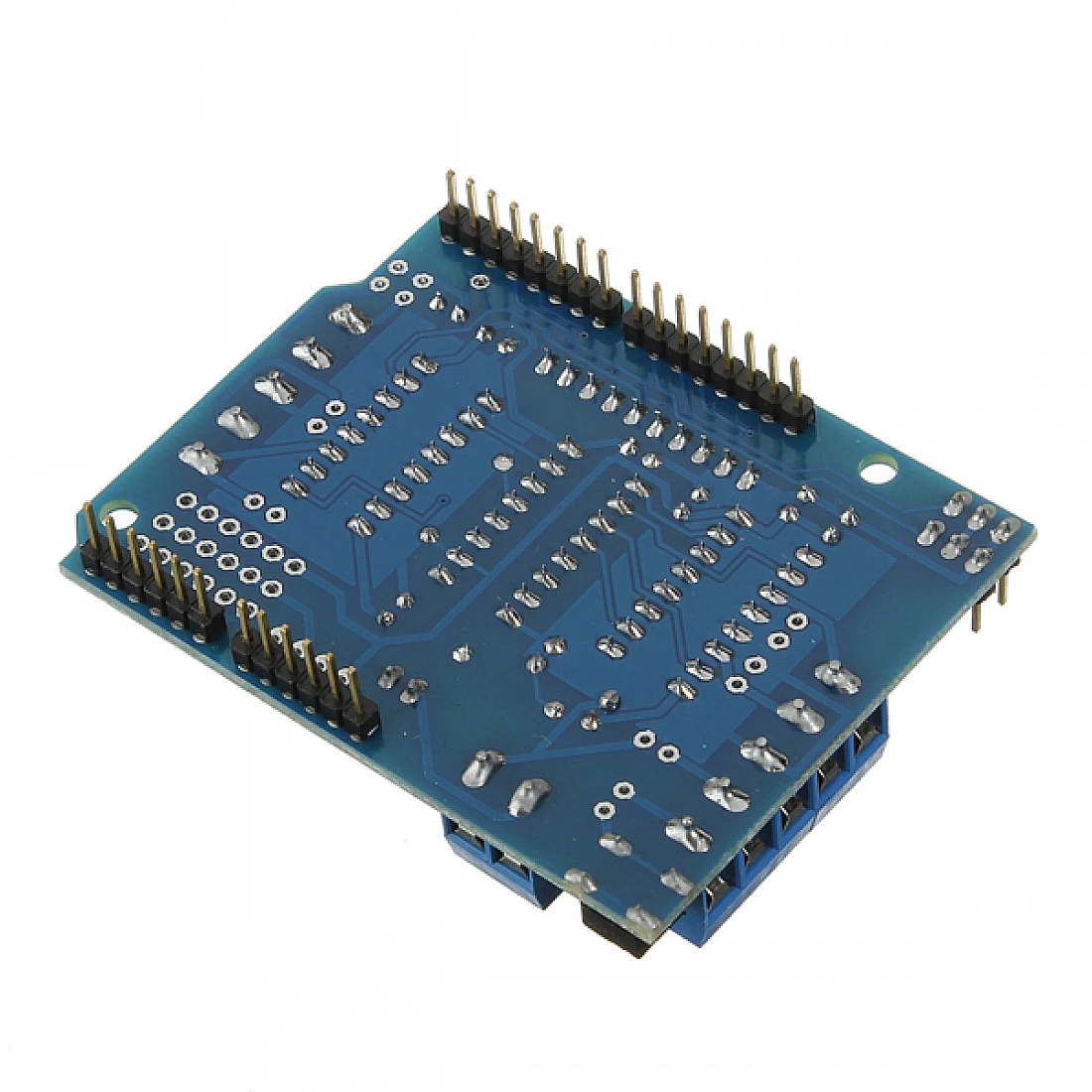

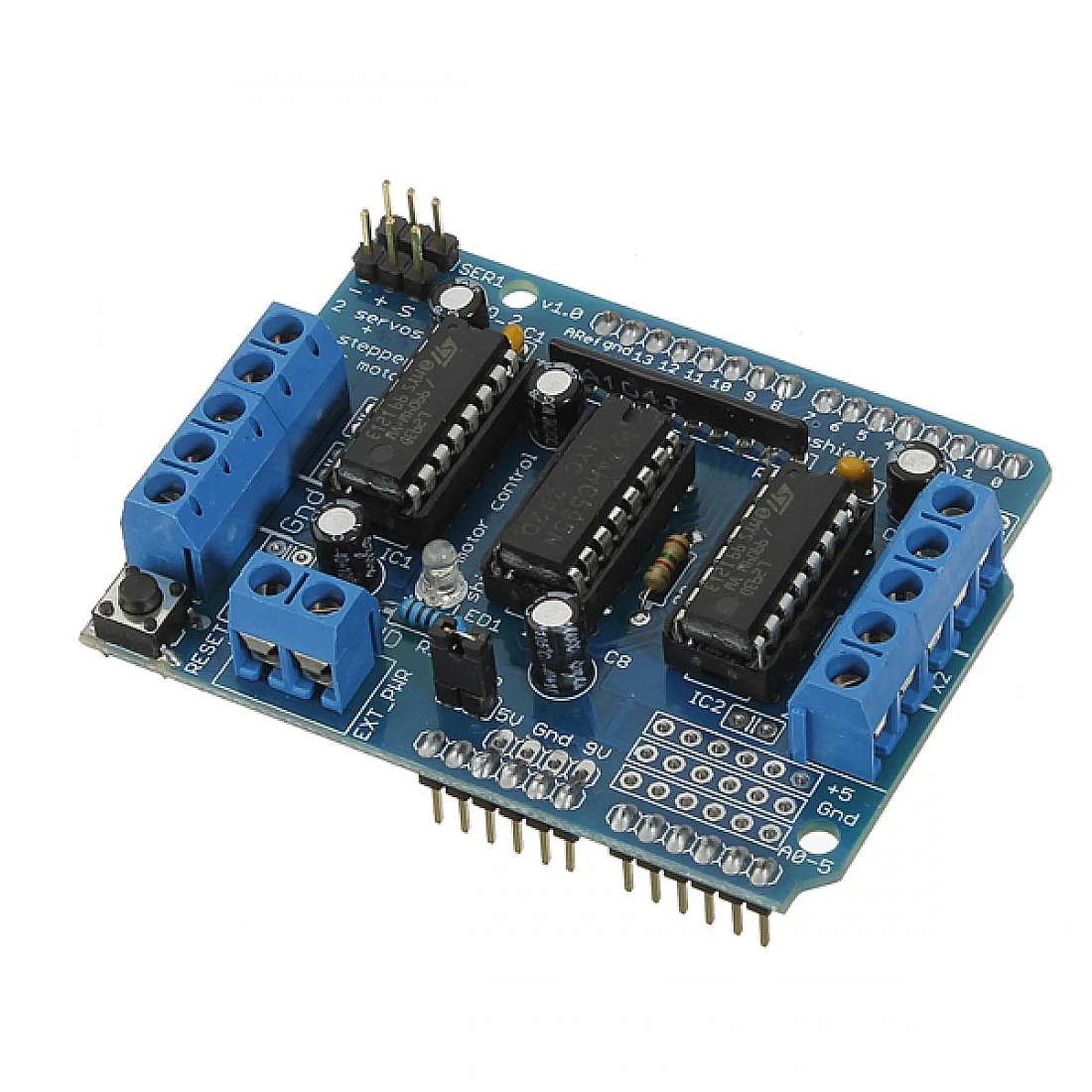

Motor Driver Module
Description
The L293D Motor Driver Module is a dual H-bridge driver used to control DC and stepper motors.
It allows direction and speed control using PWM signals from microcontrollers like Arduino.
Ideal for robotics and automation projects with support up to 12V and 600mA current.
Manufacturer Details
| Manufacturer | Part Number |
|---|---|
| Texas Instruments | L293D |
| STMicroelectronics | L293D |
| NXP Semiconductors | L293D |
| ON Semiconductor | L293D |
| Toshiba | L293D |
Vendor Suppliers
| Vendor | SKU | Link |
|---|---|---|
| No listings | ||
Application Resources
Project Codes
Technical Specifications
| Driver IC | L293D |
| Motor Type | DC & Stepper Motor |
| Operating Voltage | 4.5V – 12V |
| Current Rating | 600mA per channel |
| Peak Current | 600mA |
| Control Method | Direction + PWM Speed Control |
| Number of Channels | 2 (H-Bridge) |
| Arduino Compatible | Yes (via wires) |
| Polarity Protection | NO |
| Cooling Fan | NO |
| Dimensions | 48 x 34 x 14 mm |
| Weight | 15g |
