EMA-00010-D

Name: L293D Motor Driver
Brand: Generic
SKU: EMA-00010-D
Availability: InStock

(Last updated) Jun 03, 2026

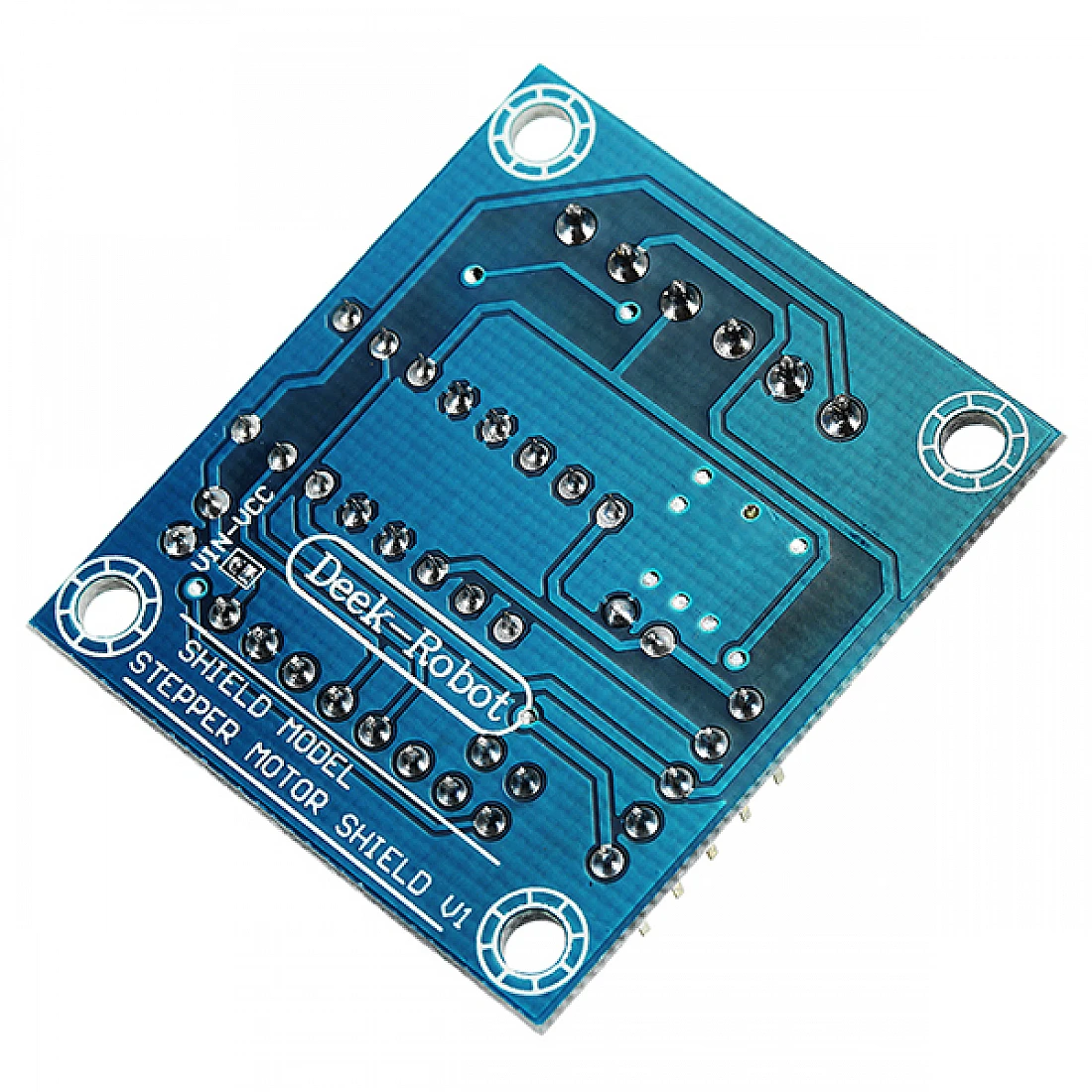

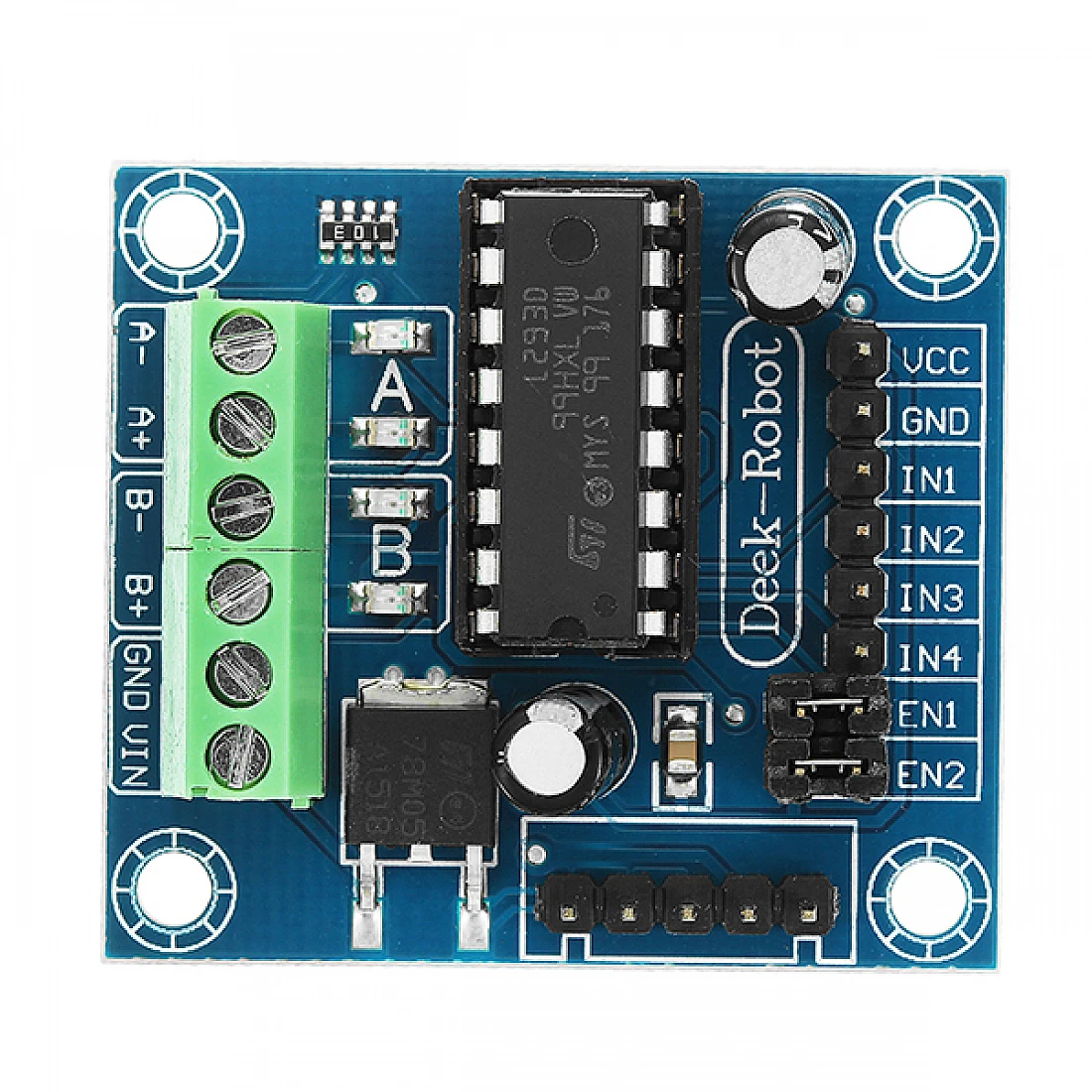

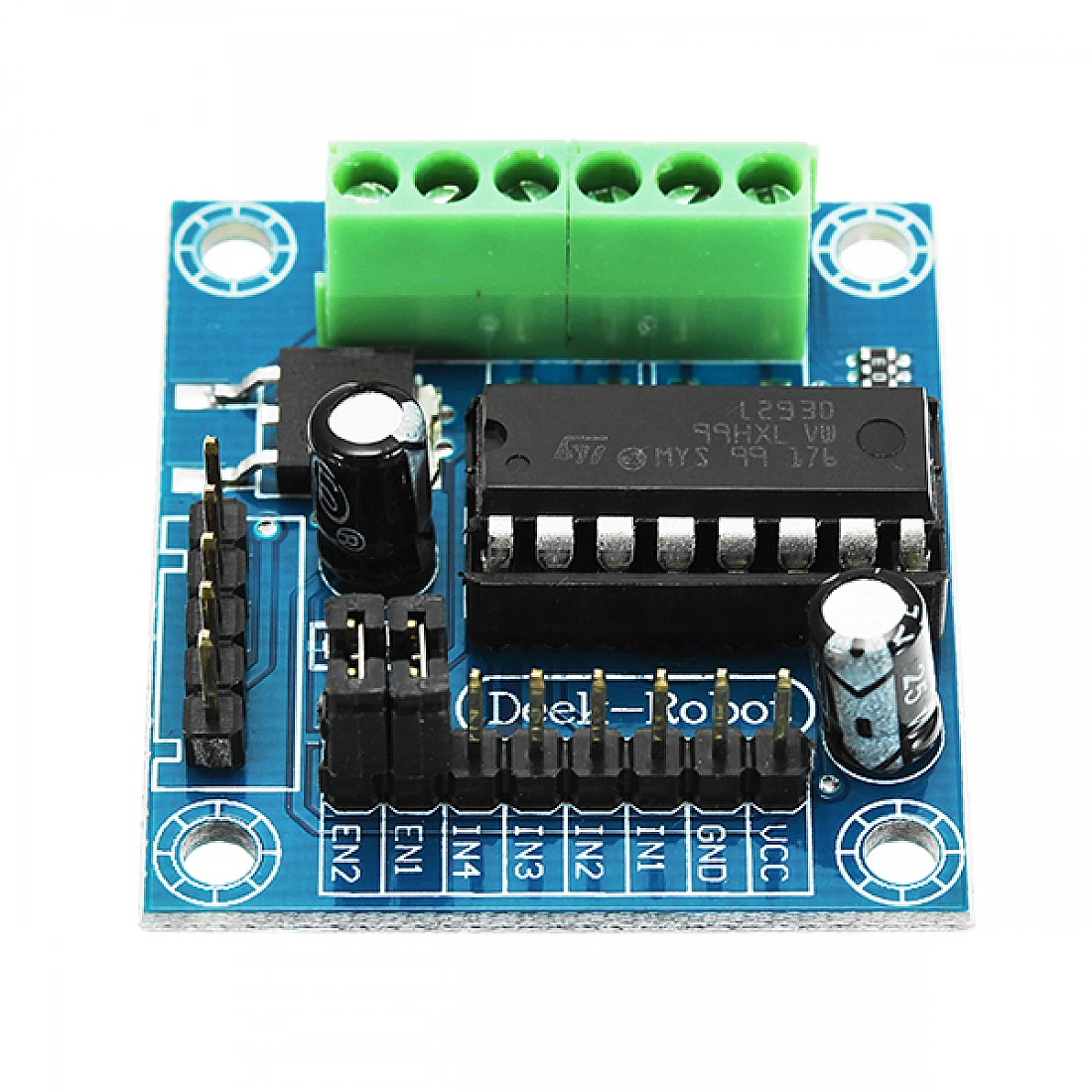

L293D Motor Driver

Motor Driver

Description

The L293D Motor Driver is a dual H-Bridge motor driver IC used to control DC motors and stepper motors using microcontrollers like Arduino, ESP32, Raspberry Pi, and PIC controllers. It allows low-power digital circuits to safely control higher-current motors. The IC contains two H-Bridge circuits, enabling independent bidirectional control of two DC motors or one stepper motor. The built-in flyback protection diodes help protect the circuit from voltage spikes generated by motors.

Manufacturer Details

Manufacturer	Part Number
Texas Instruments	L293D
STMicroelectronics	L293D
SparkFun	SN754410

Vendor Suppliers

Amazon ( india ) Amazon ( Japan ) Amazon ( USA ) Amazon ( canada ) Robu.in ( India ) FlyRobo ( India )

Application Resources

No application resources.

Technical Specifications

Product Type	Motor Driver IC
IC Type	Dual H-Bridge
Motor Channels	2 DC Motors or 1 Stepper Motor
Logic Voltage	4.5V – 7V
Motor Voltage	4.5V – 36V
Output Current	600mA per channel
