EDT-00001-E
(Last updated) Jun 05, 2026

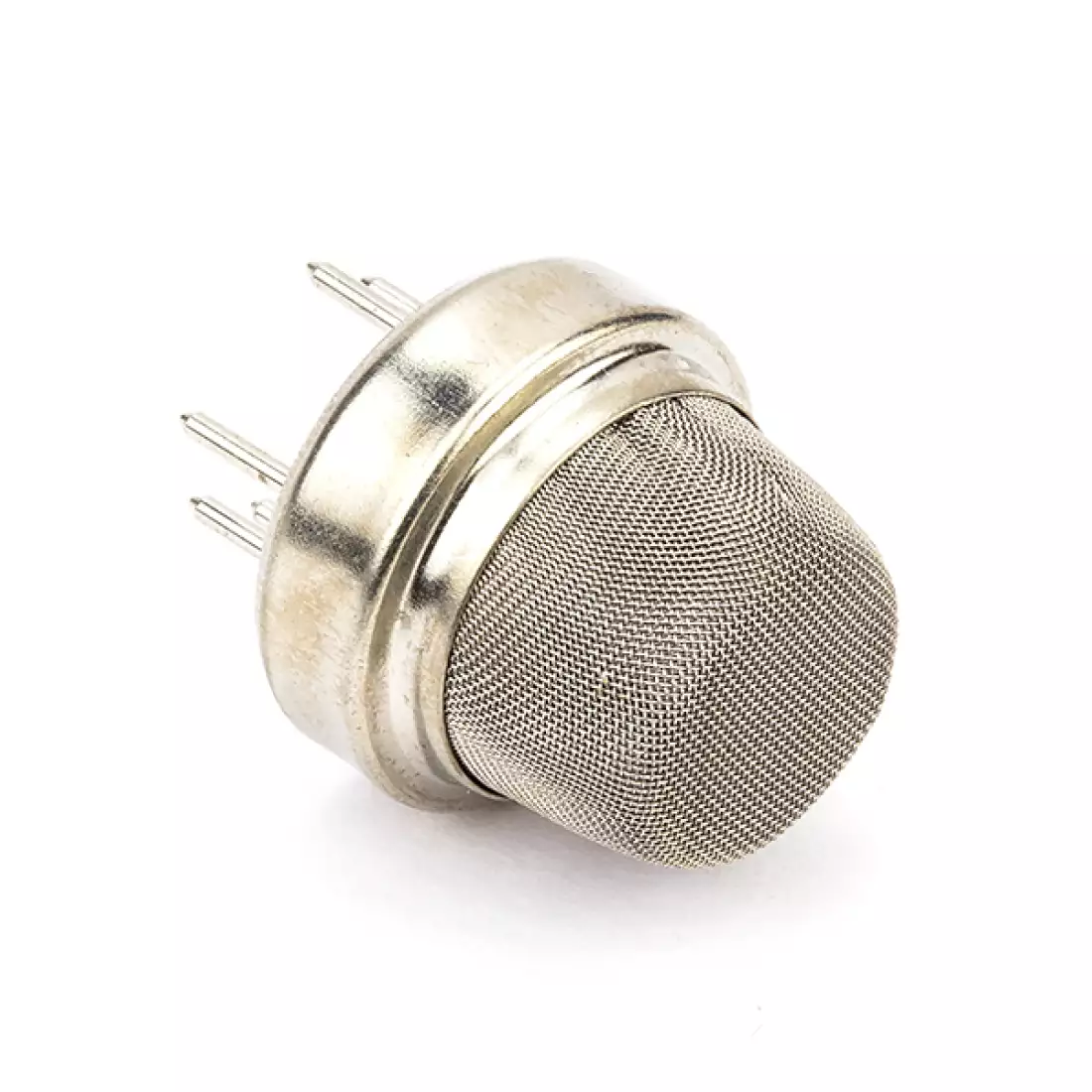

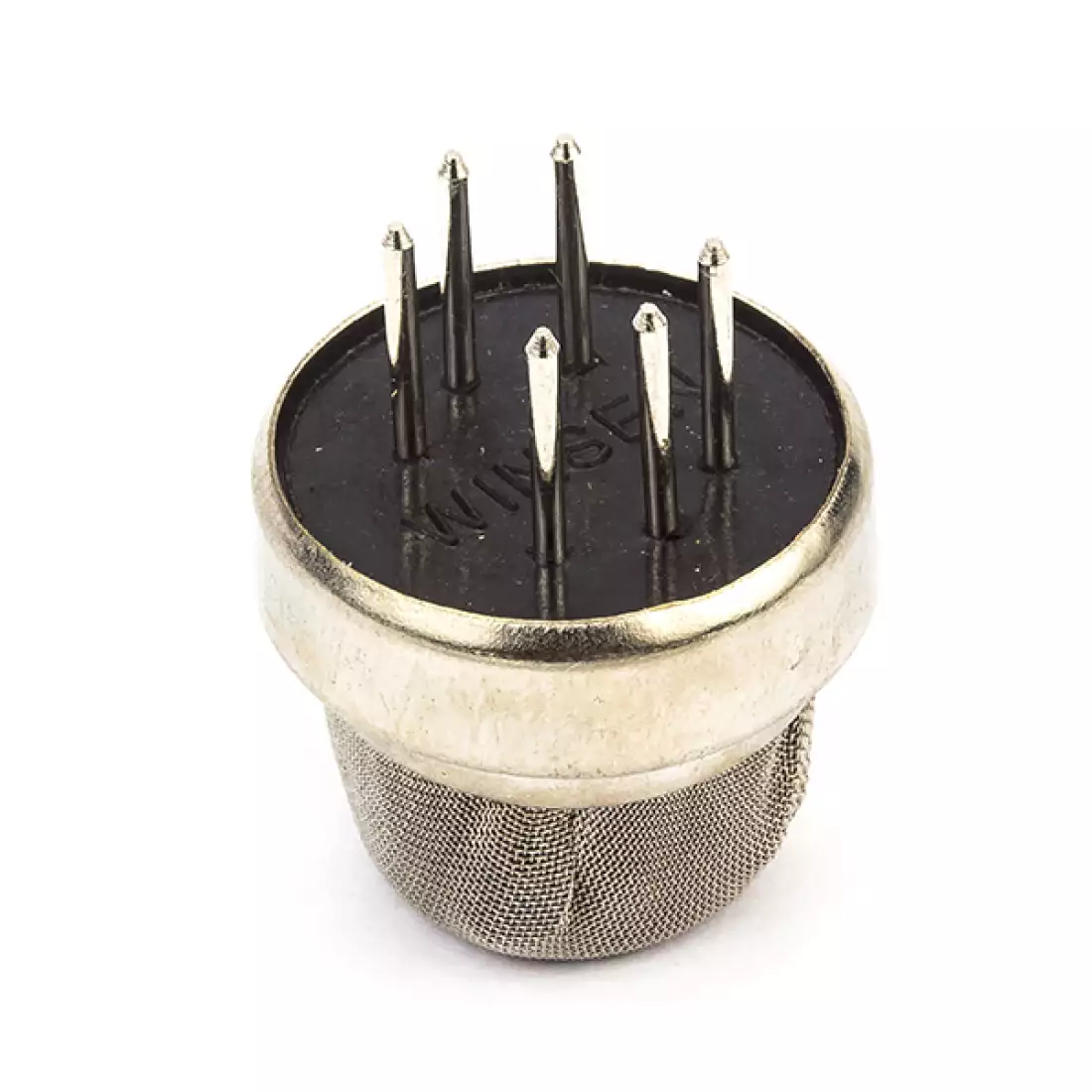

Gas Sensor Device
Gas Sensor Device- LPG, butane
Category
Subcategory
EDT - Electronic Device Transducer
Description
Gas sensor device designed for detecting LPG (liquefied petroleum gas), butane, and propane gas leaks in safety and monitoring applications. It is commonly used in gas leakage alarm systems, smart home safety devices, industrial safety monitoring, and IoT-based gas detection projects.
The sensor provides analog output proportional to gas concentration, allowing easy interfacing with microcontrollers such as Arduino and embedded systems.
Manufacturer Details
| Manufacturer | Part Number |
|---|---|
| Hanwei Electronics | MQ-6 |
| Winsen | ZE03-LPG-BUTANE |
| Figaro Engineering | TGS2610 Series |
Vendor Suppliers
Application Resources
No application resources.
Technical Specifications
| Sensor Type | LPG / Butane Gas Sensor |
| Target Gas | LPG, Butane, Propane |
| Operating Voltage | 5V DC |
| Warm | up Time: 20–60 seconds |
| Detection Range | ~200–10000 ppm (typical) |
