5161AS Datasheet (Lite-On) 0.56" 7-Segment Display SC56-11EWA Product

EDD-00004-A

Name: 1 Digit 7-Segment LED Display
Brand: Generic
SKU: EDD-00004-A
Availability: InStock

(Last updated) May 22, 2026

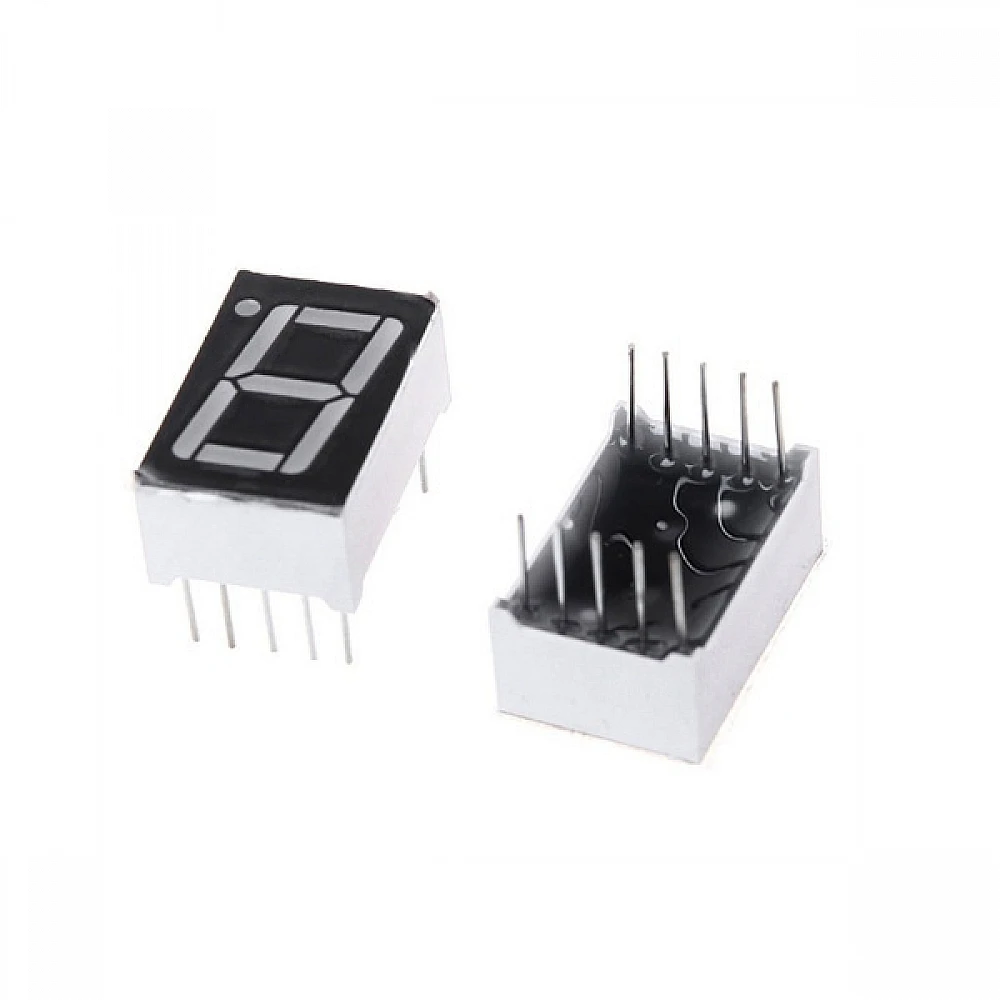

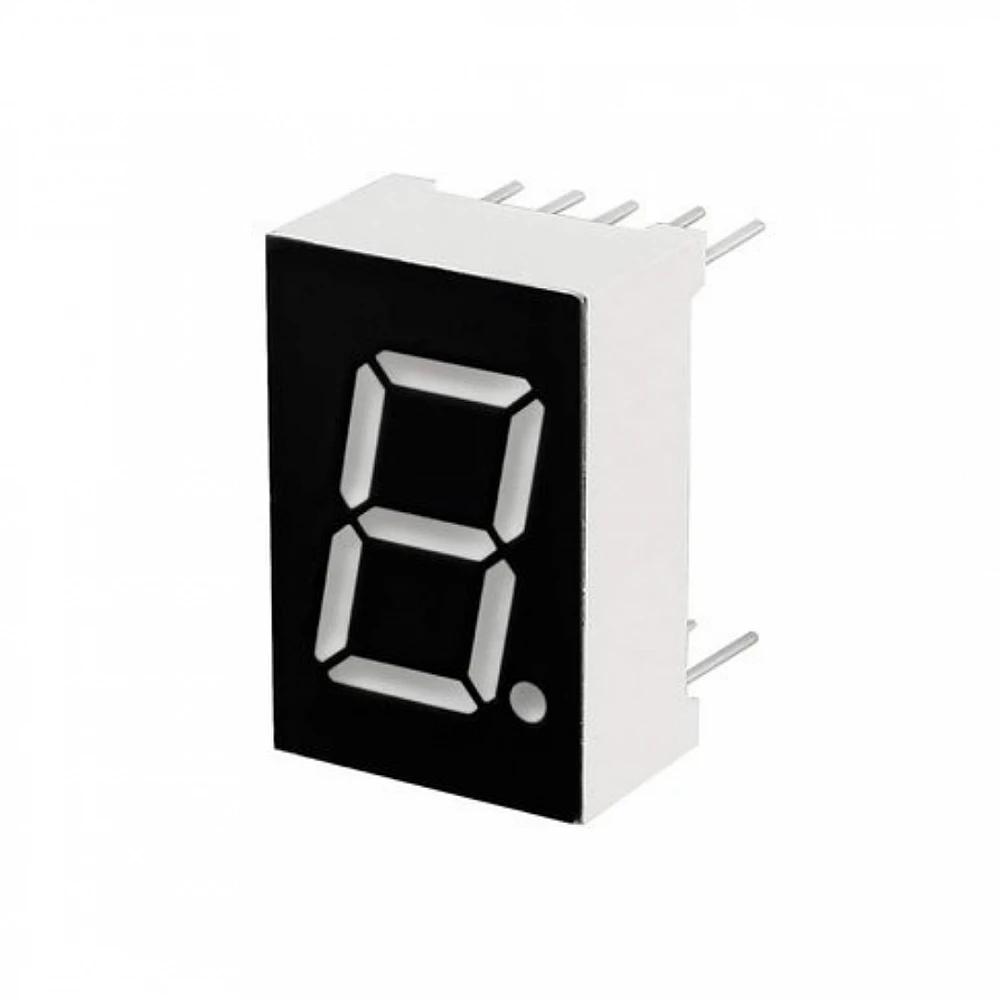

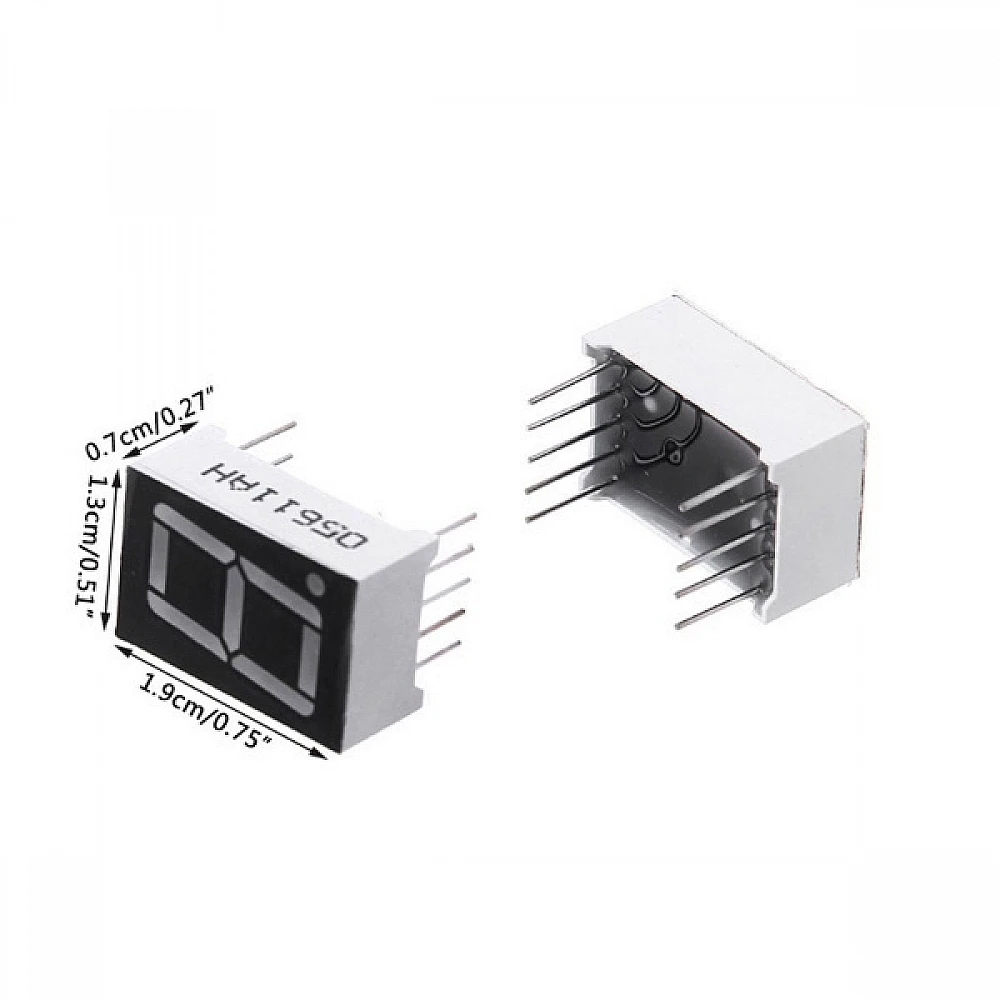

1 Digit 7-Segment LED Display

1 Digit 7-Segment Display

Description

The 0.56” 1-Digit 7-Segment LED Display is designed to display decimal numbers (0–9) using seven LED segments. It features a common cathode configuration with bright red LEDs for clear and efficient numeric indication. Ideal for digital clocks, counters, meters, and microcontroller-based display applications.

Manufacturer Details

Manufacturer	Part Number
Lite-On Technology	5161AS
Kingbright	SC56-11EWA
Generic / OEM	0.56-1D-CC-RED

Vendor Suppliers

Amazon ( india ) Amazon ( Japan ) Amazon ( USA ) Amazon ( canada ) Robu.in ( India ) FlyRobo ( India )

Application Resources

7 Segment led Appnotes How Seven Segment Display Works

Technical Specifications

Model	7 Segment LED Display
Digit Count	1 Digit
Display Size	0.56 Inch
Configuration Type	Common Cathode
Emitting Color	Red
Face Color	Black
Number of Pins	10
Forward Voltage (V)	1.8 – 2.2 (Typical for Red LED)
Forward Current (mA)	20 (Typical)
Mounting Type	PCB Through Hole
Characteristics	High Brightness, Low Current Consumption, Easy to Use
Length (Inch)	0.56
Shipping Weight	0.02 kg
Shipping Dimensions (L × W × H cm)	6 × 4 × 2
