EMS-00015-A

(Last updated) Jun 02, 2026

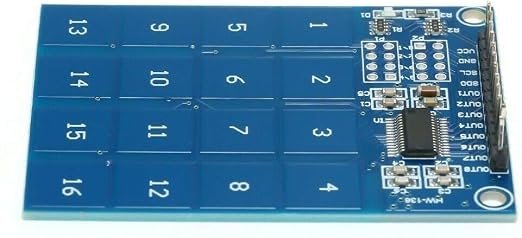

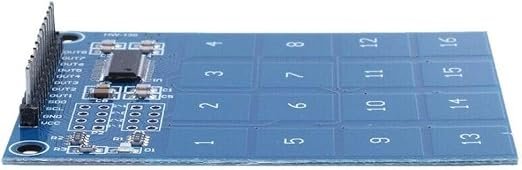

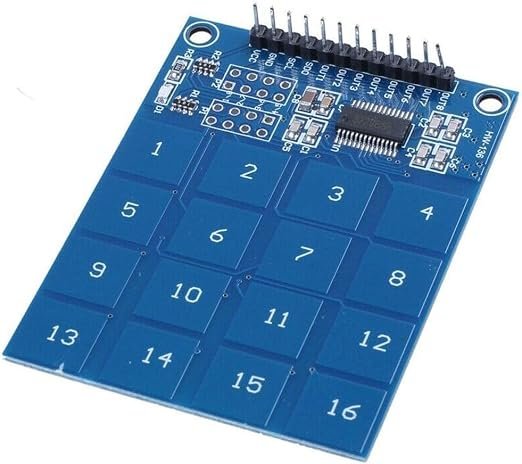

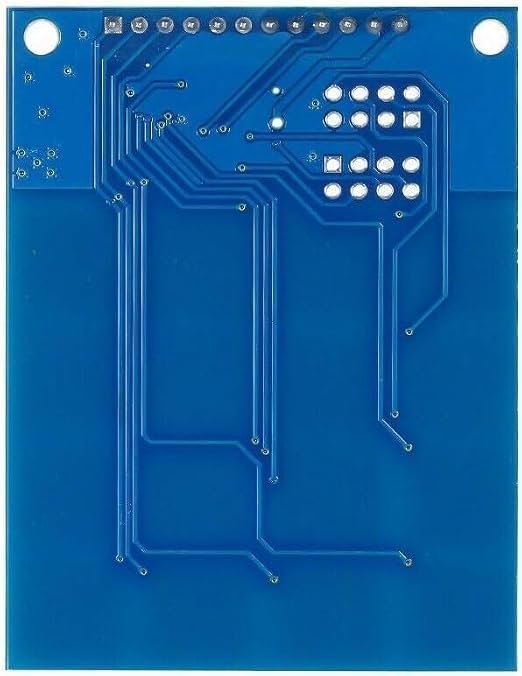

Touch keyboard TTP229 16 keys capacitive

Touch keyboard TTP229

Subcategory
EMS - Input: Sensors

Description

The TTP229 16-Key Capacitive Touch Keyboard is a touch-sensitive input module based on the TTP229 capacitive sensing IC. Unlike traditional membrane or mechanical keypads, this module detects finger touch using capacitive sensing technology, providing silent, durable, and highly responsive operation.

Manufacturer Details

Manufacturer Part Number
Tontek Design Technology TTP229
Robocraze RC-TTP229
Keyestudio KS-TTP229

Application Resources

No application resources.

Technical Specifications

Product Type Capacitive Touch Keypad
IC Used TTP229
Number of Keys 16
Key Layout 4×4
Operating Voltage 2.4V – 5.5V DC
