EMX-00002-A

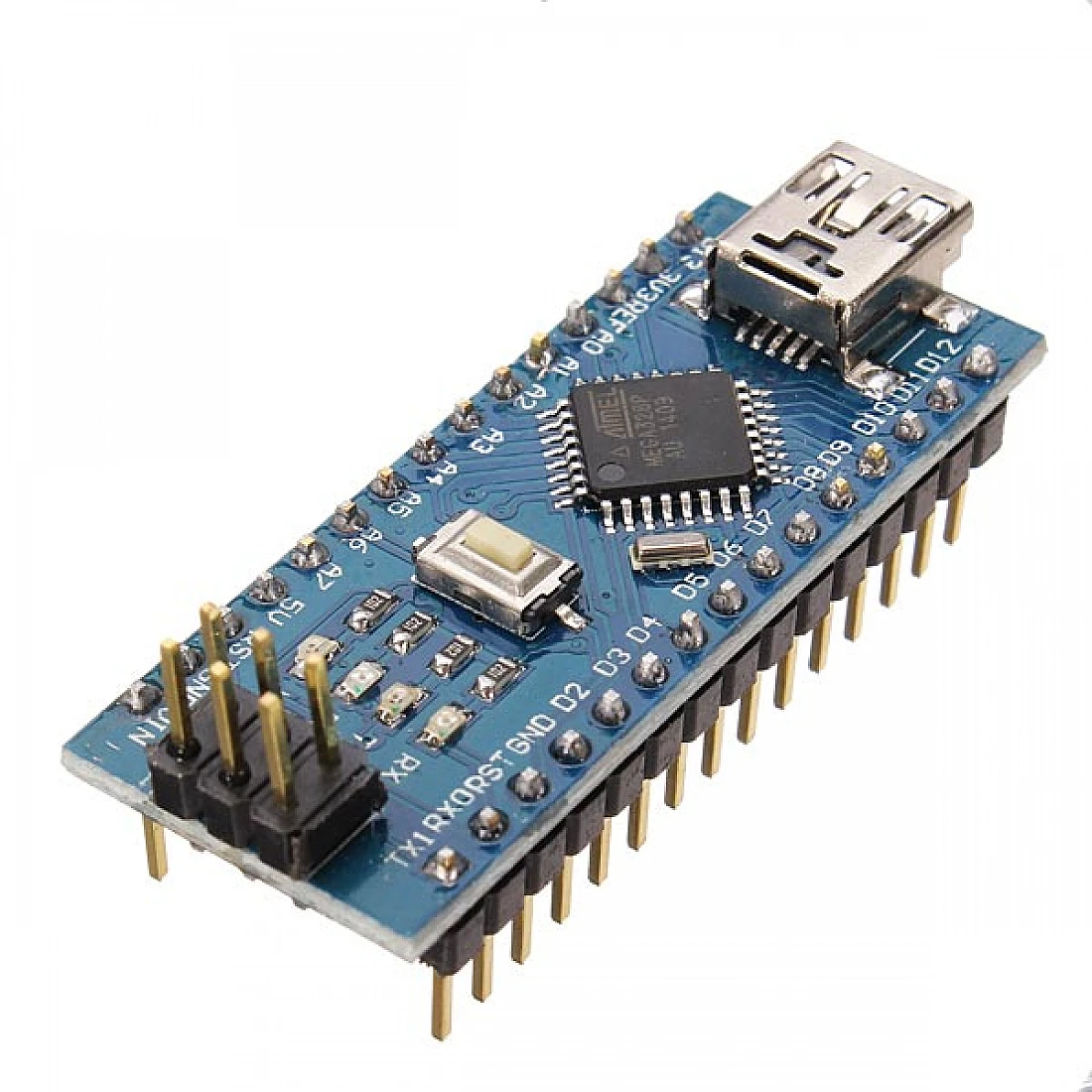

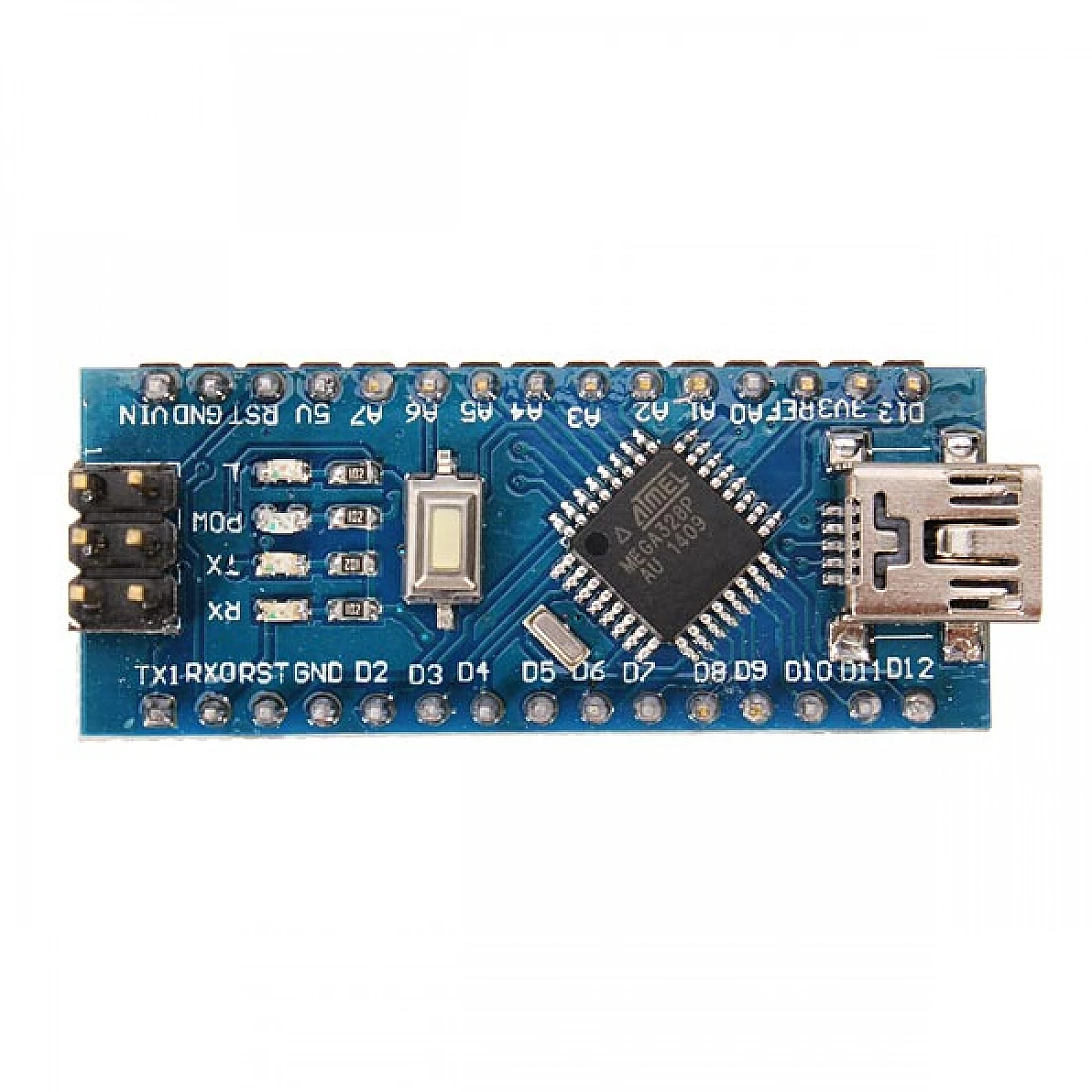

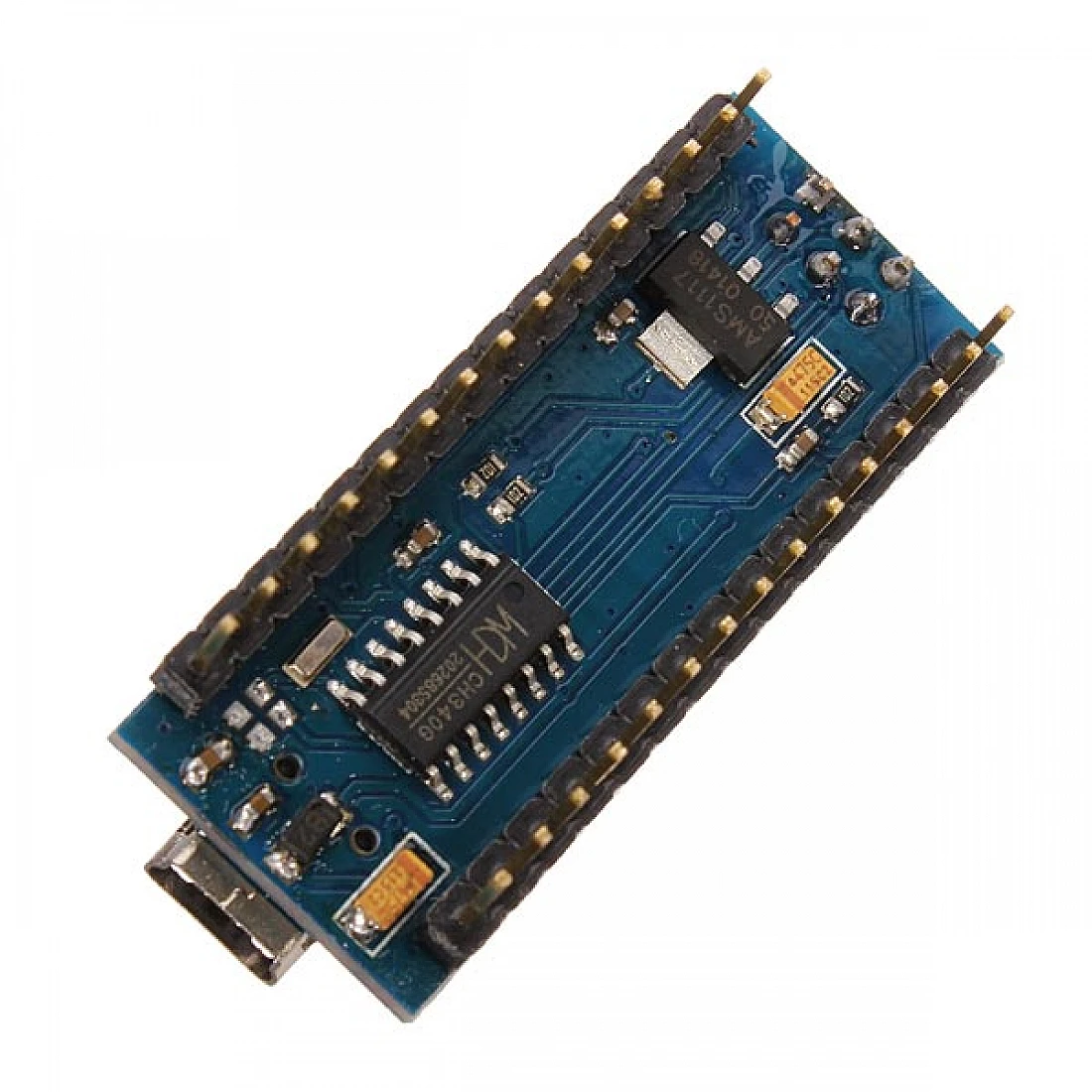

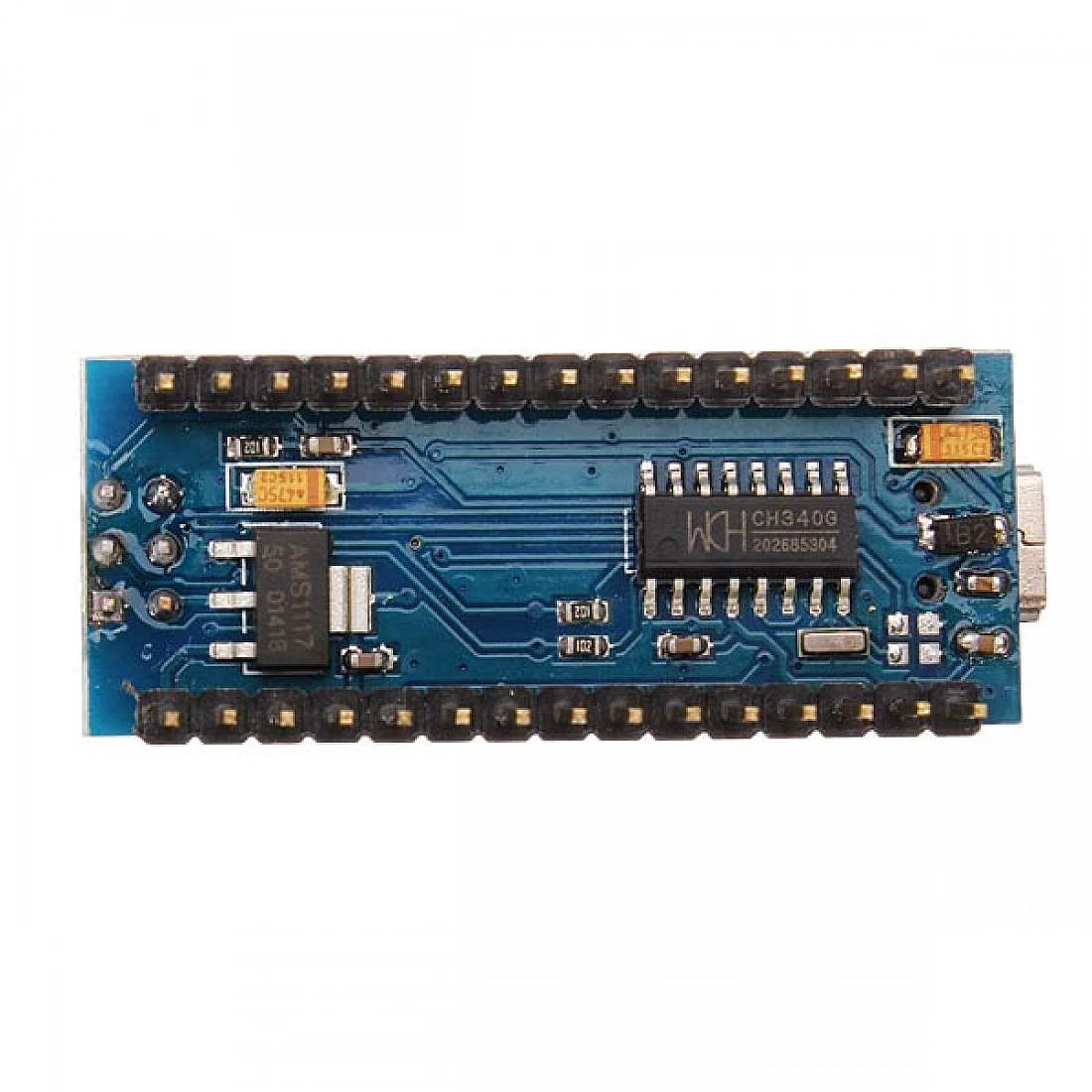

Arduino nano
Compact breadboard Arduino board
Description
Manufacturer Details
| Manufacturer | Part Number |
|---|---|
| Arduino | A000005 |
| Gravitech | NANO-V3.0 |
| RobotDyn | RD-NANO-V3 |
| Keyestudio | KS0005 |
| DFRobot | DFR0010 |
Technical Specifications
| Microcontroller | ATmega328 |
| Flash Memory | 32 KB (ATmega328) of which 2 KB used by bootloader |
| SRAM | 1 KB or 2KB |
| EEPROM | 512 bytes (ATmega168) or 1 KB (ATmega328) |
| Clock Speed | 16 MHz |
| Digital I/O Pins | 14 (of which 6 provide PWM output) |
| Analog Input Pins | 8 |
| DC Current per I/O Pin | 40 mA |
| Operating Voltage | 5V |
| Input Voltage | 7 - 12 V (5V model) |
