EMA-00006-B

Name: Passive Buzzer Module
Brand: Generic
SKU: EMA-00006-B
Availability: InStock

(Last updated) May 08, 2026

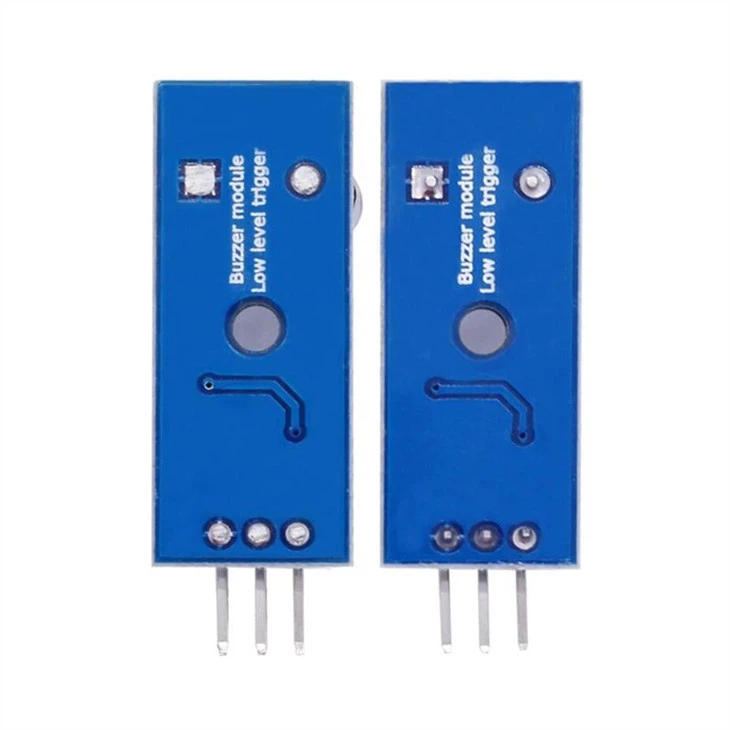

Passive Buzzer Module

Description

Passive buzzer module designed to generate variable tones using PWM or frequency control. Operates from 1.5V to 15V DC and produces tones in the 1.5–2.5 kHz range. Ideal for alarms, alerts, Arduino projects, and microcontroller-based sound applications.

Manufacturer Details

Manufacturer	Part Number
ED Series / Generic Compatible	KY-006
KEYESTUDIO	KY-006

Vendor Suppliers

Amazon ( india ) Amazon ( Japan ) Amazon ( USA ) Amazon ( canada ) Robu.in ( India ) FlyRobo ( India )

Application Resources

Passive Buzzer Appnote Passive Buzzer Module Basics

Technical Specifications

Model	Passive Buzzer Module
Operating Voltage (VDC)	1.5 – 15
Max Operating Current (mA)	25
Tone Generator Frequency Range (kHz)	1.5 – 2.5
Mounting Type	PCB Mount
Pin Pitch	2.54 mm
Compatibility	Arduino / Microcontrollers
Length (mm)	15
Width (mm)	19.7
Height (mm)	10
Weight (g)	1 (approx.)
Shipping Weight	0.01 kg
Shipping Dimensions (L × W × H)	6 × 4 × 2 cm
