ESP8266 NodeMCU

EMC-00003-A

Name: NodeMcu
Brand: Generic
SKU: EMC-00003-A
Availability: InStock

(Last updated) May 19, 2026

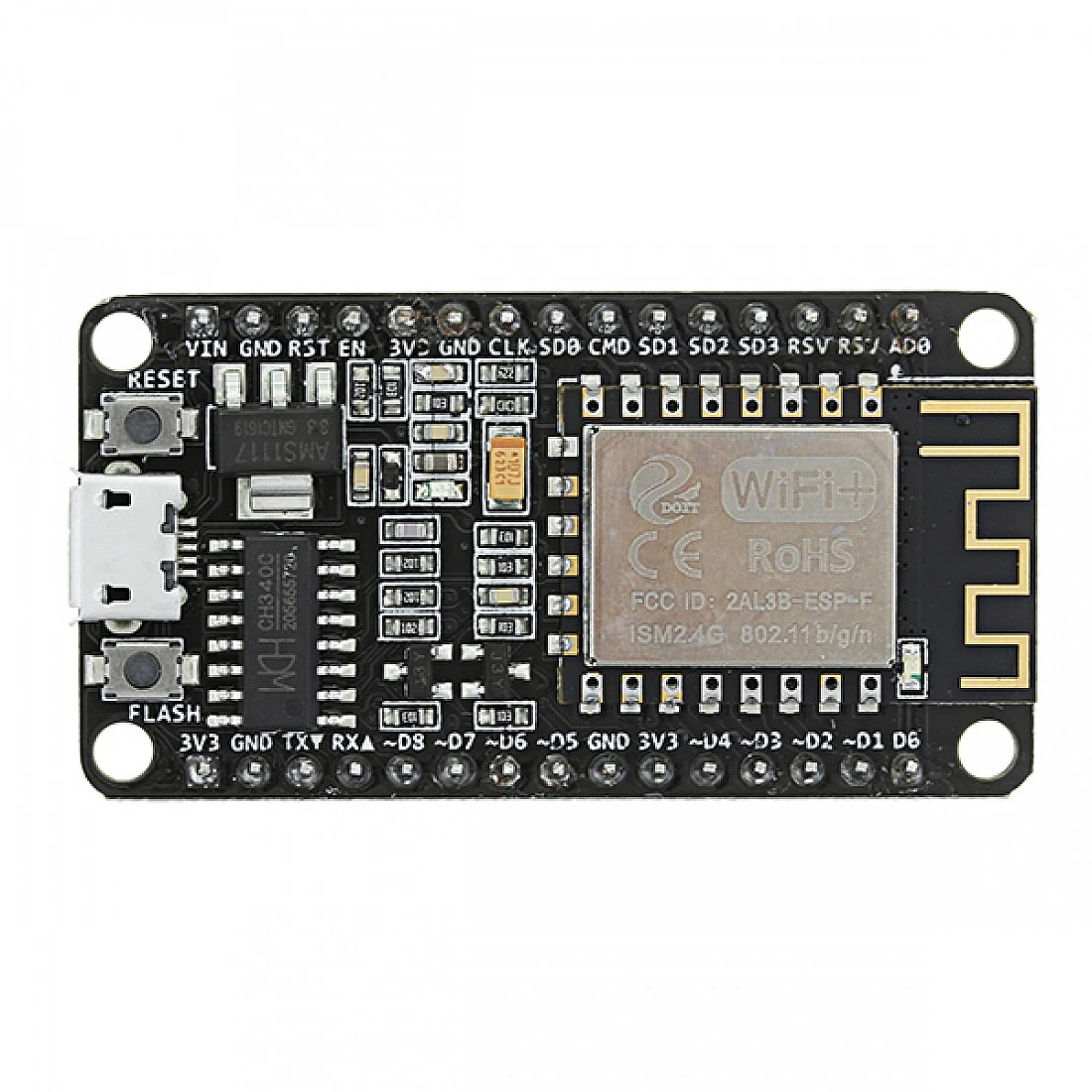

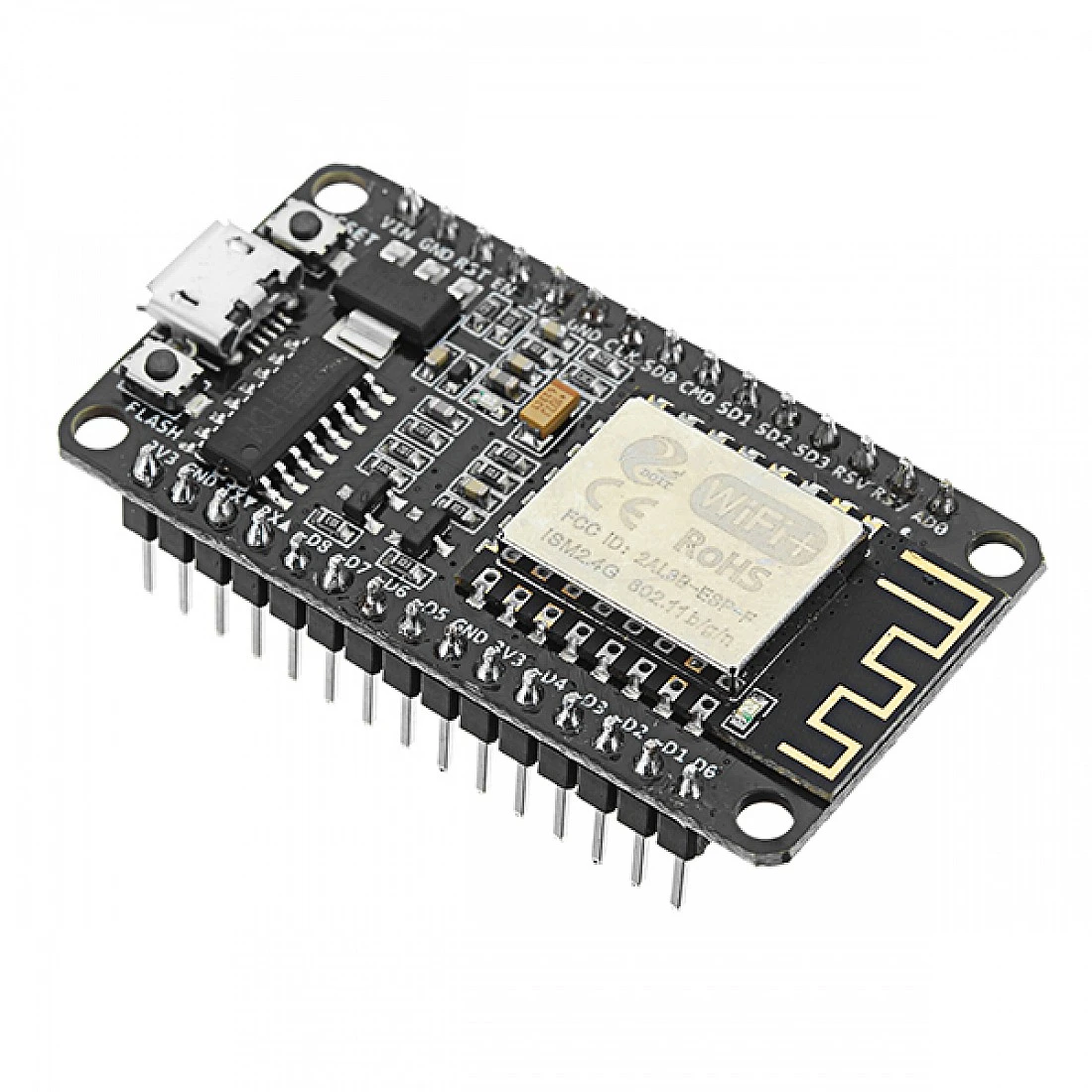

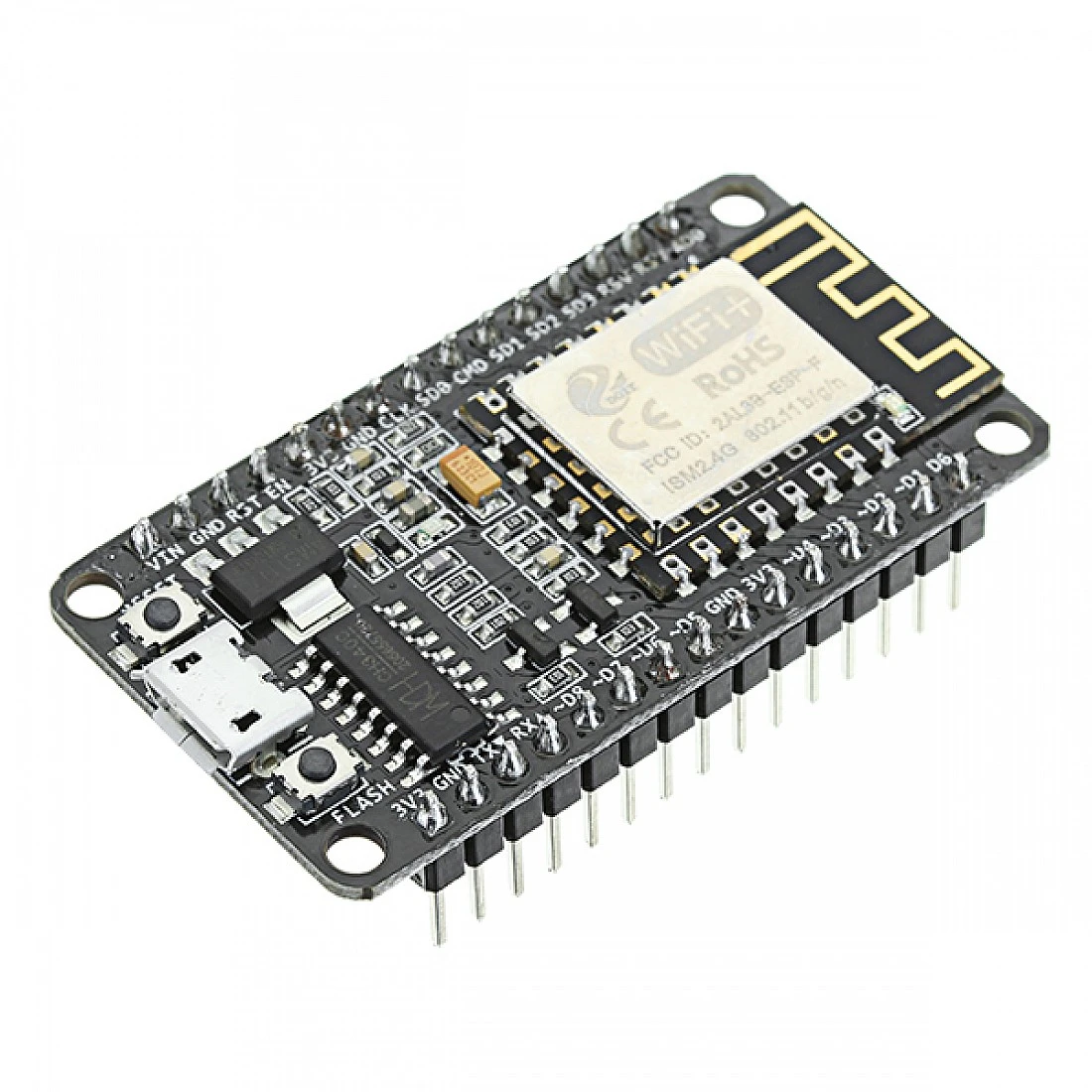

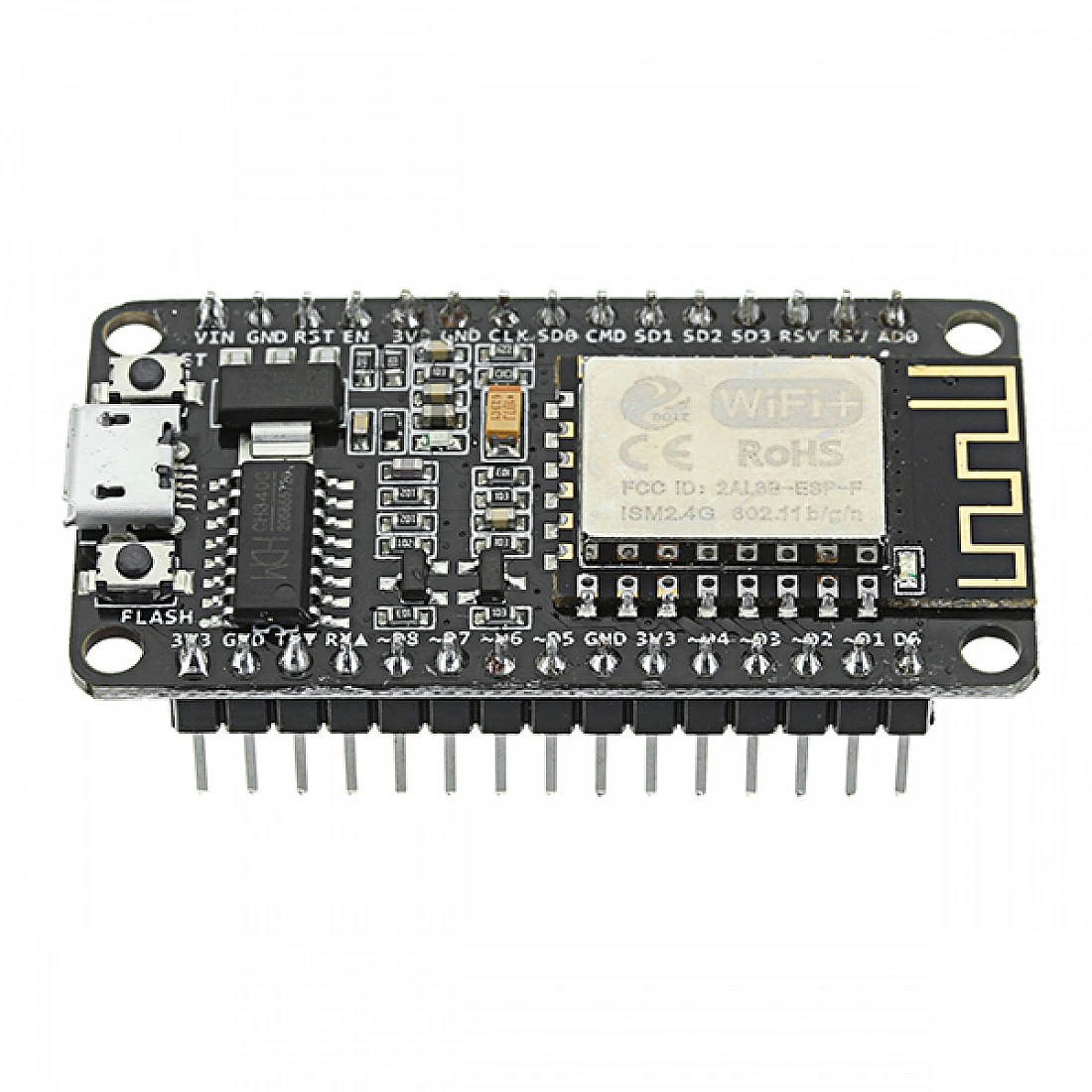

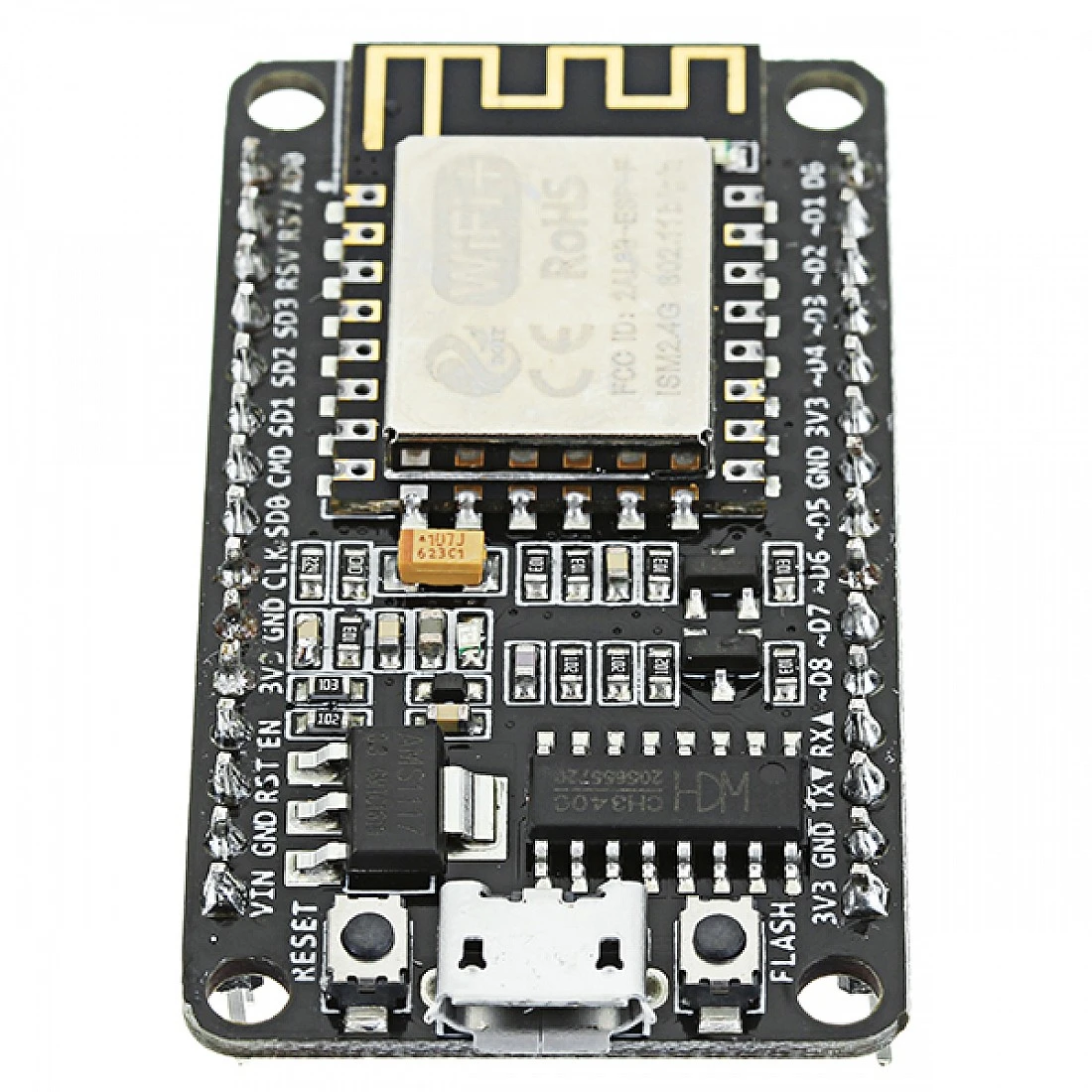

NodeMcu

NodeMcu ESP8266 Module

Description

The ESP8266 NodeMCU CH340 board has ESP8266 which is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor. ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application-specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including the front-end module, is designed to occupy minimal PCB area. The ESP-12 Lua NodeMCU WIFI Dev Board Internet Of Things with ESP8266 is an all-in-one microcontroller + WiFi platform that is very easy to use to create projects with WiFi and IoT (Internet of Things) applications.

Manufacturer Details

Manufacturer	Part Number
Espressif Systems	ESP8266EX
Ai-Thinker	ESP-12E
NodeMCU	DevKit V1.0

Vendor Suppliers

Amazon ( india ) Amazon ( Japan ) Amazon ( USA ) Amazon ( canada ) Robu.in ( India ) FlyRobo ( India )

Application Resources

NodeMCU ESP 8266

Technical Specifications

Processor	L106 32 bit
Processor speed	80MHz to 160MHz
Flash memory	4MB
Analog to digital	1 input with 1024 resolution
Maximum concurrent TCP connection	5
GPIOs	17
Transfer rate	110 Kbps to 460800 Kbps
Input voltage supply	4.5V to 9V
Communication interface voltage	3.3V
Current consumption	10uA-170mA
