EMA-00010-E
(Last updated) Jun 03, 2026

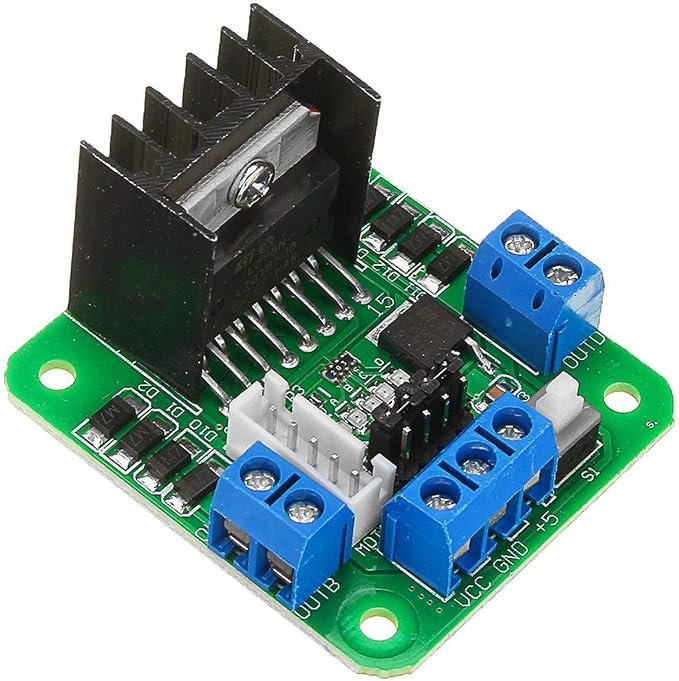

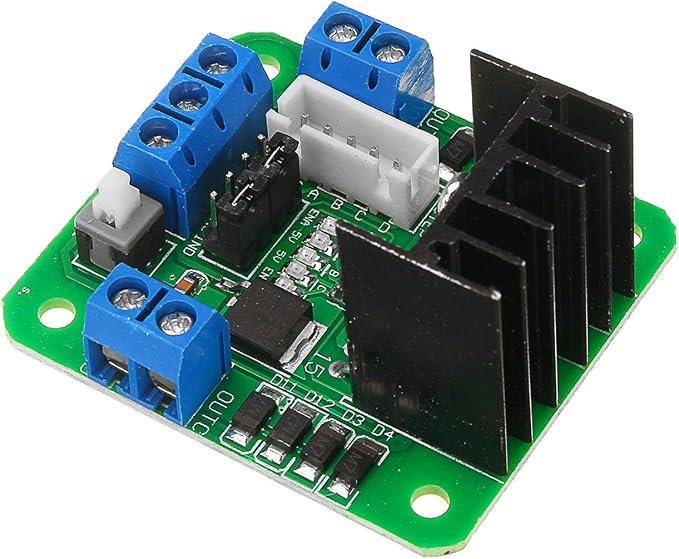

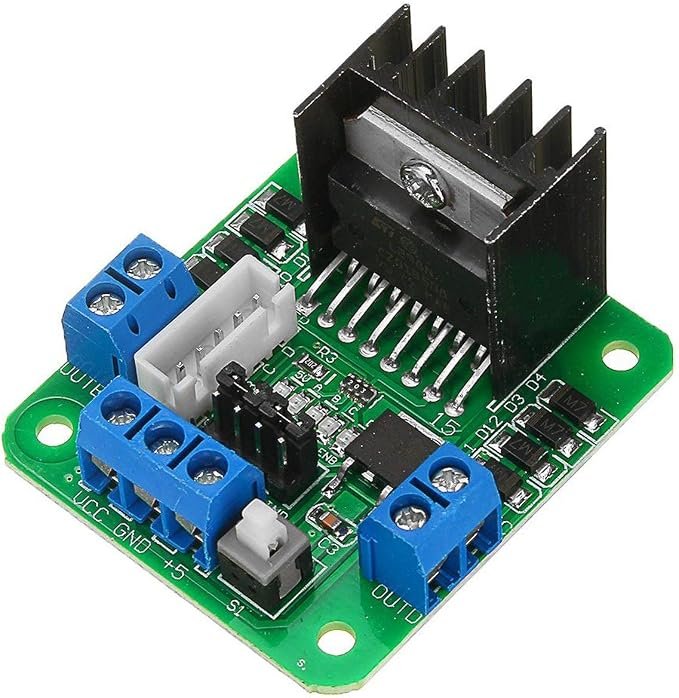

L 298 Motor Driver Module
Motor Driver Module
Category
Subcategory
EMA - Output: Actuators
Description
The L298 Motor Driver Module (L298N) is a dual H-Bridge motor driver used to control the speed and direction of DC motors and stepper motors. It allows microcontrollers like Arduino, ESP32, and Raspberry Pi to drive motors that require higher current and voltage than the controller can provide directly.
Manufacturer Details
| Manufacturer | Part Number |
|---|---|
| STMicroelectronics | L298N |
| STMicroelectronics | L298 |
| SparkFun | ROB-09457 |
| Keyestudio | KS0360 |
Application Resources
No application resources.
Technical Specifications
| Product Type | Motor Driver Module |
| IC Used | L298N Dual H-Bridge |
| Motor Channels | 2 DC motors or 1 stepper motor |
| Operating Voltage (Logic) | 5V |
| Motor Voltage | 5V – 35V DC |
