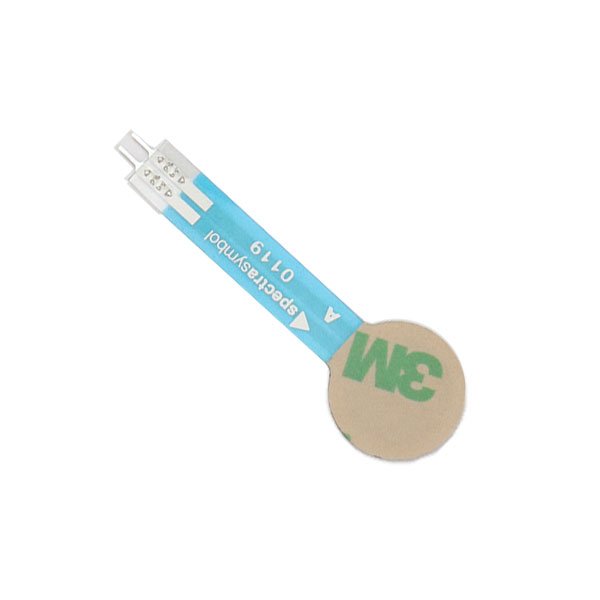

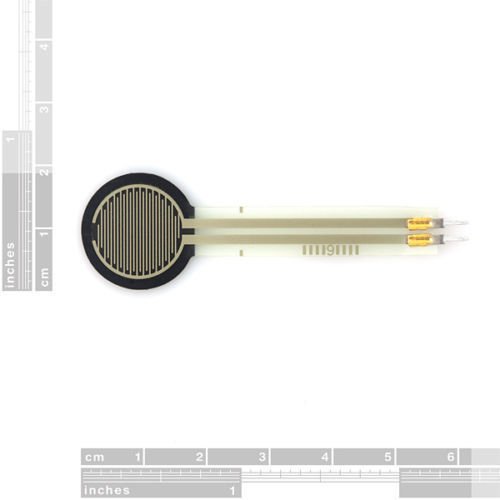

FSR Round Module

Pressure sensing FSR

Subcategory
EMS - Input: Sensors

Description

The Round Force Sensitive Resistor (FSR) is a pressure sensor with a 0.5-inch sensing area that changes resistance based on applied force. It detects pressure in the 100g to 10kg range and can be easily interfaced with microcontrollers using a voltage divider circuit. It is widely used in touch sensing, load detection, robotics, and Arduino projects.

Manufacturer Details

Manufacturer Part Number
Interlink Electronics FSR 402
SparkFun Electronics SEN-09375
DFRobot SEN0205
Adafruit Industries 166
Ohmite FSR03CE
Tekscan A201-1

Technical Specifications

Diameter 1.8 cm
Max Pressure 10 Kg
Min Pressure 100 gm
Sensing area 1.4 cm (Dia.)
Shape Circular
Length 6 cm

Part Family Variants (2)

Variant Title Status
EDT-00006-A Current FSR Round Module Published
EDT-00006-B Force Sensor Published
