EMS-00025-A
(Last updated) Jun 01, 2026

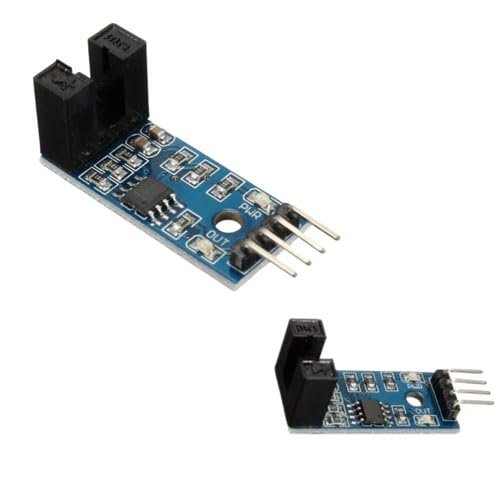

Encoder Sensor Module
Encoder Sensor
Category
Subcategory
EMS - Input: Sensors
Description
Encoder Sensor Modules are used to detect rotation, speed, direction, and position in robotics, automation, motor control, CNC machines, smart vehicles, and Arduino projects. Common encoder modules include rotary encoders (KY-040), optical encoder sensors (MOC7811), and magnetic encoder modules. These modules provide digital pulse outputs for precise motion tracking.
Manufacturer Details
| Manufacturer | Part Number |
|---|---|
| Broadcom | HEDS-5500 |
| Generic Electronics | KY-040 |
| Omron | E6B2-CWZ6C |
| AMS | AS5600 |
Vendor Suppliers
Application Resources
No application resources.
Technical Specifications
| Product Type | Encoder Sensor Module |
| Encoder Type | Rotary / Optical / Magnetic |
| Operating Voltage | 3.3V – 5V DC |
| Output Type | Digital Pulse |
Related Components in EM - Electronic-Electrical Modules
EM - Electronic-Electrical Modules
EMC-00008-B

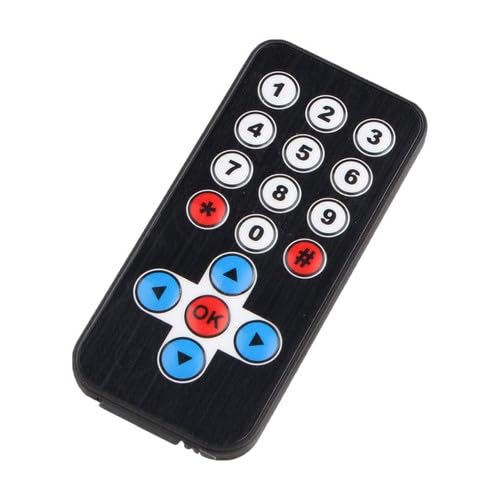

IR Remote Keypad Transmitter module
IR Remote
Category: EM - Electronic-Electrical Modules
EM - Electronic-Electrical Modules
EMS-00008-A

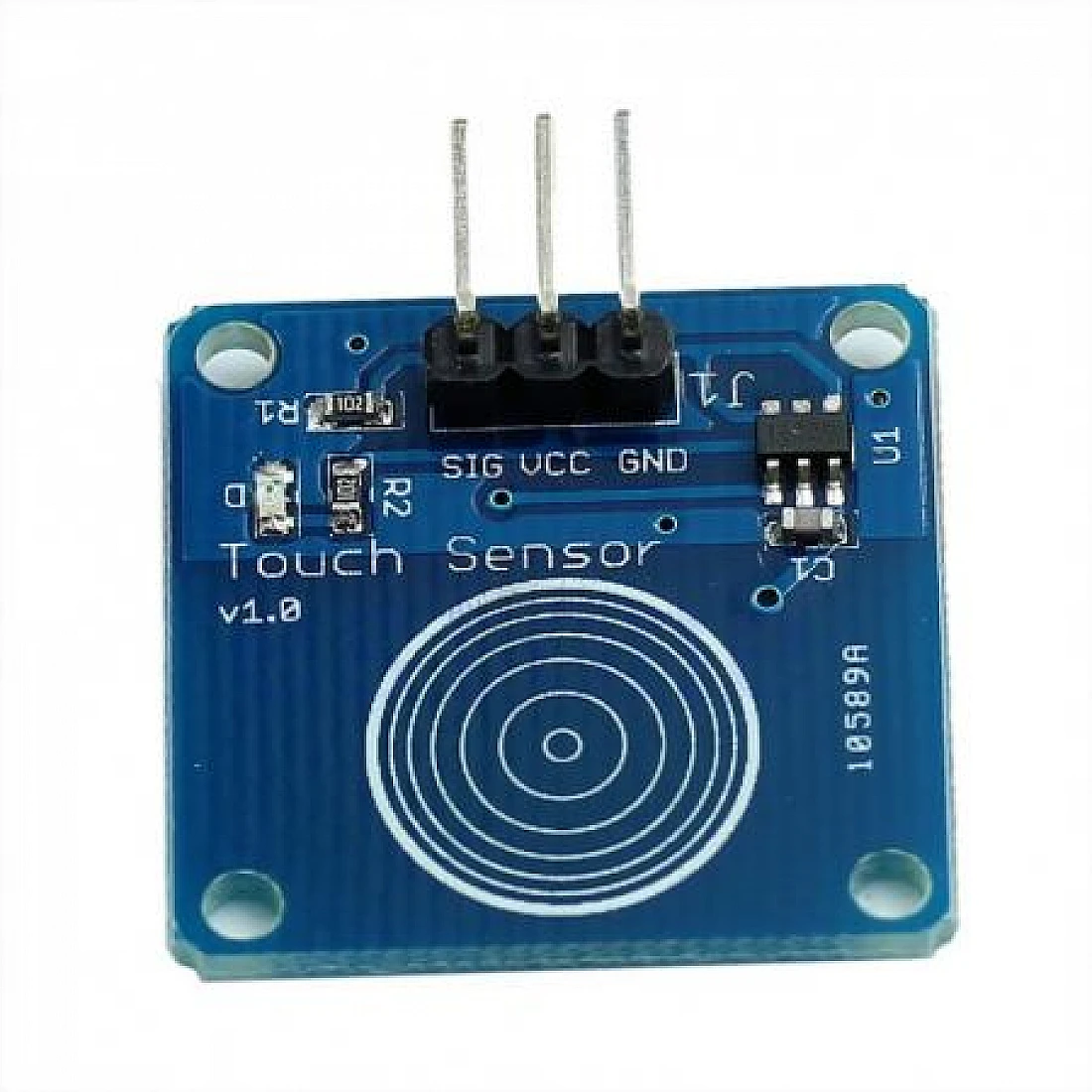

Metal touch sensor
Metal touch sensor
Category: EM - Electronic-Electrical Modules
EM - Electronic-Electrical Modules
EMA-00002-A

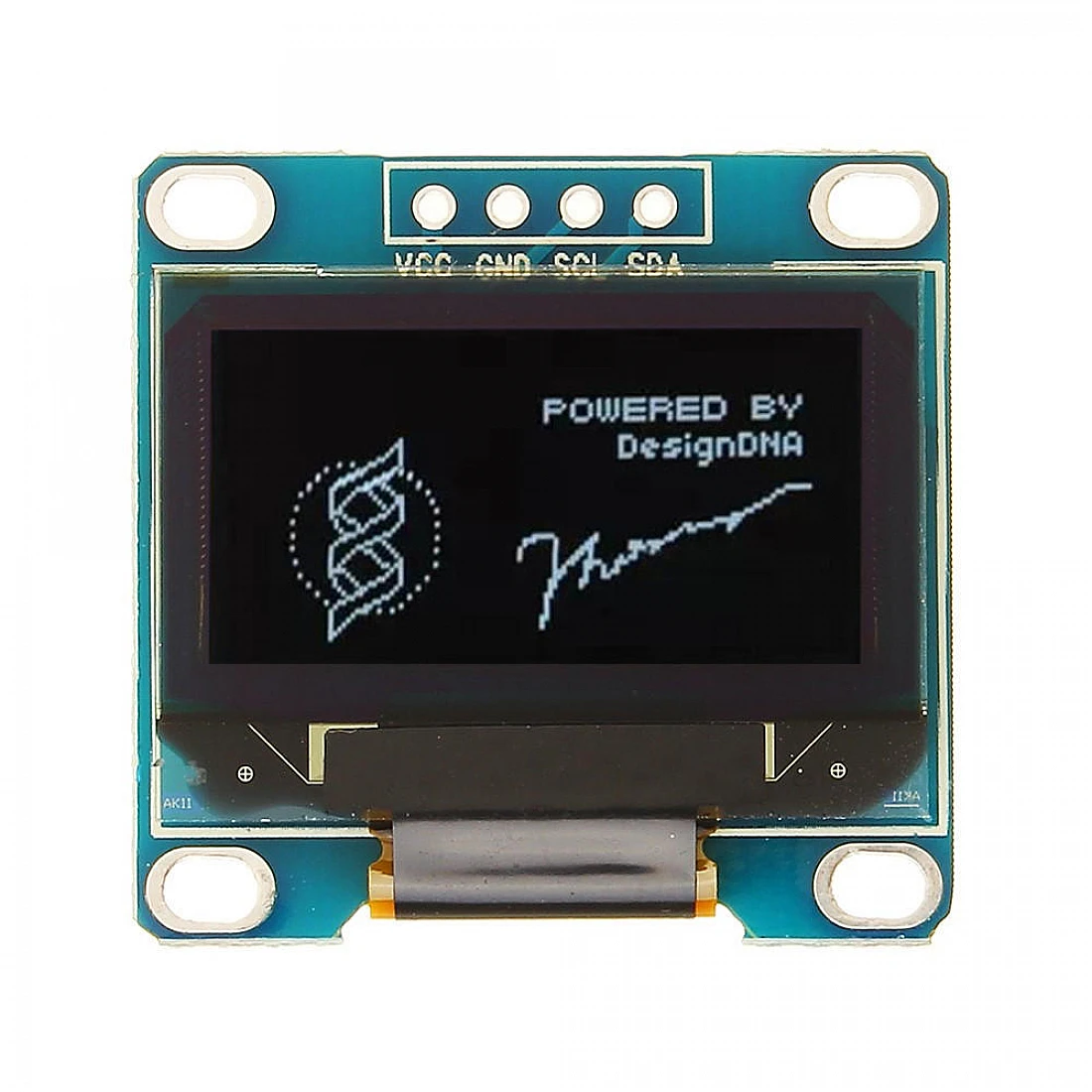

SSD1306 0.96 inch I2C OLED display
