Technical Documents
EMA-00008-B
Tested by Z2M

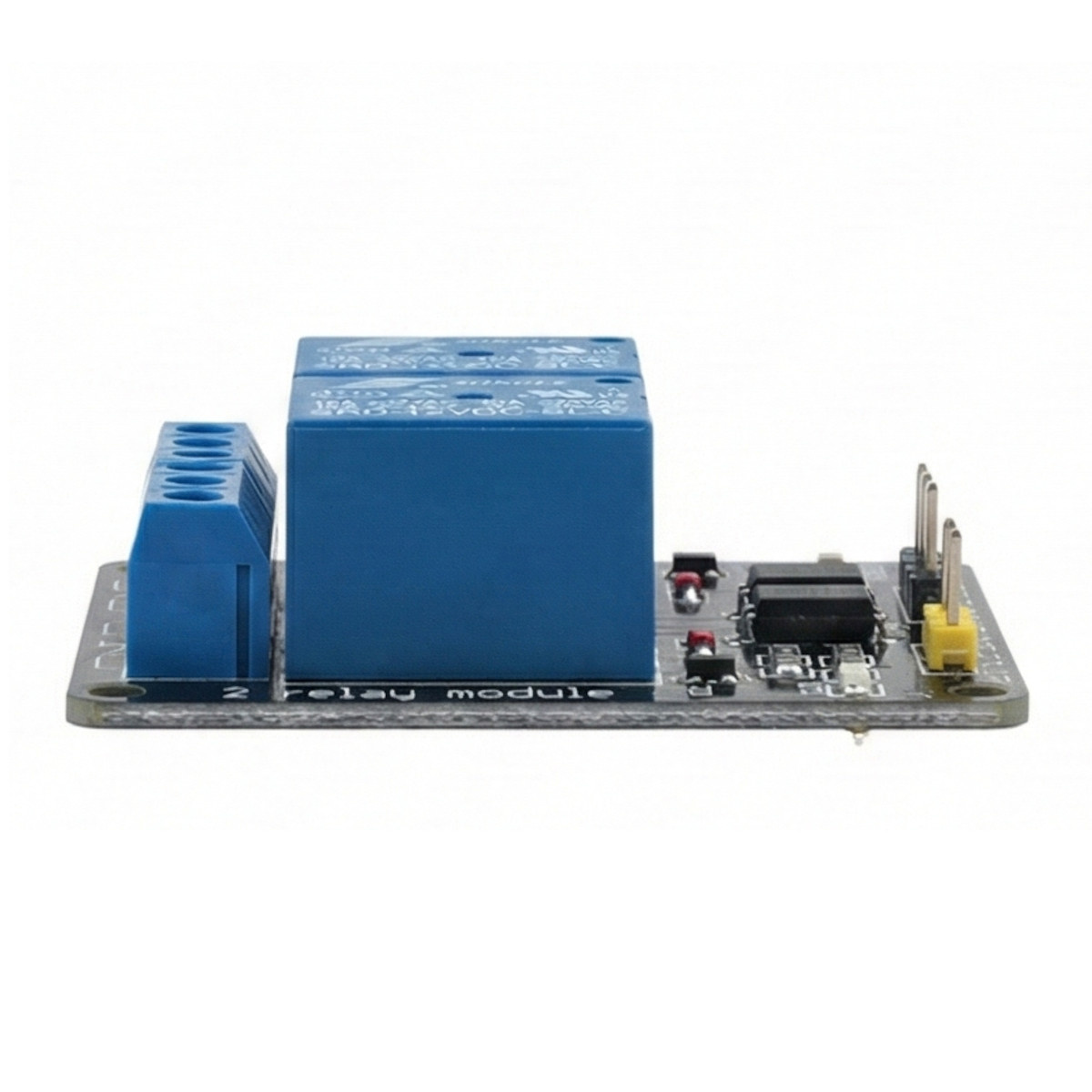

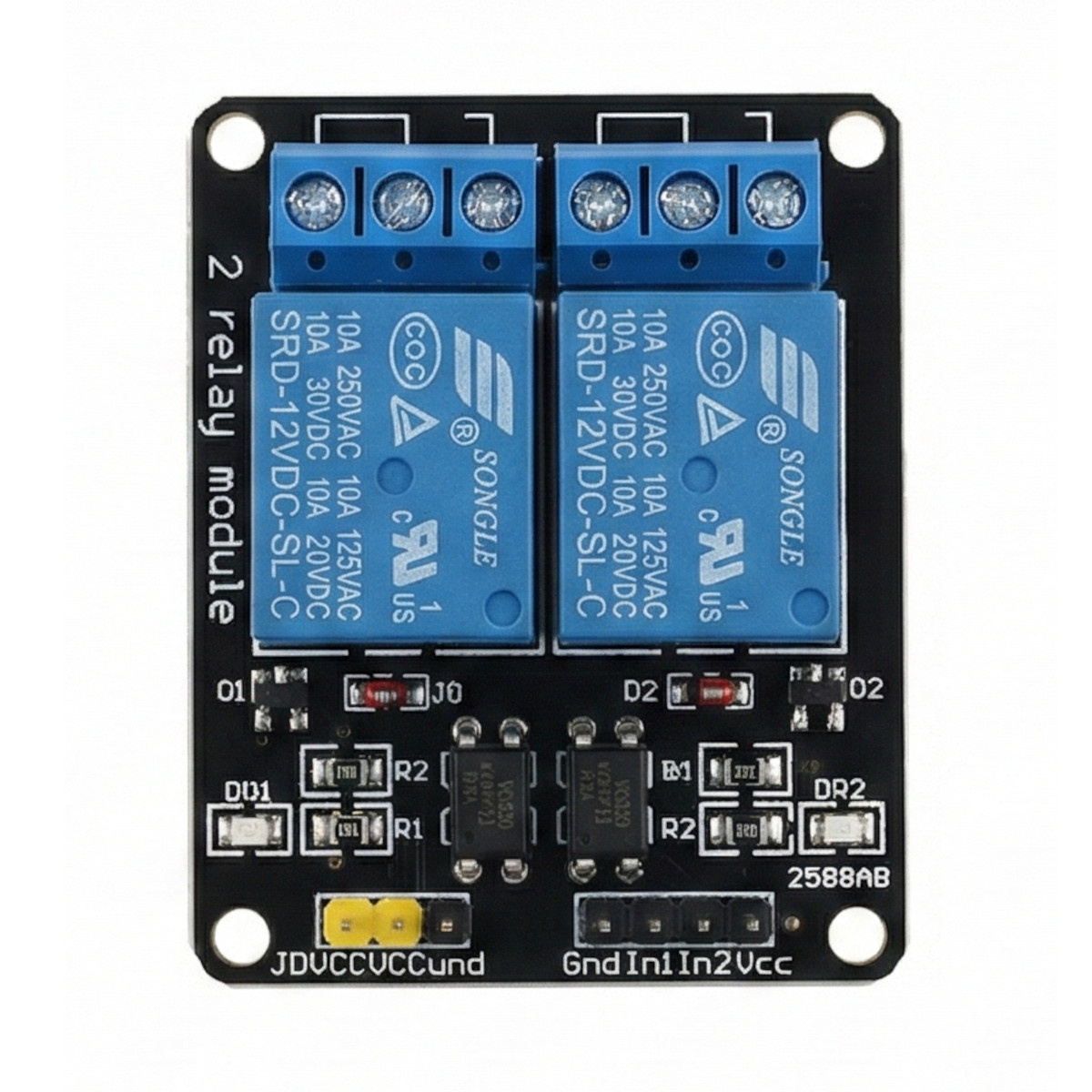

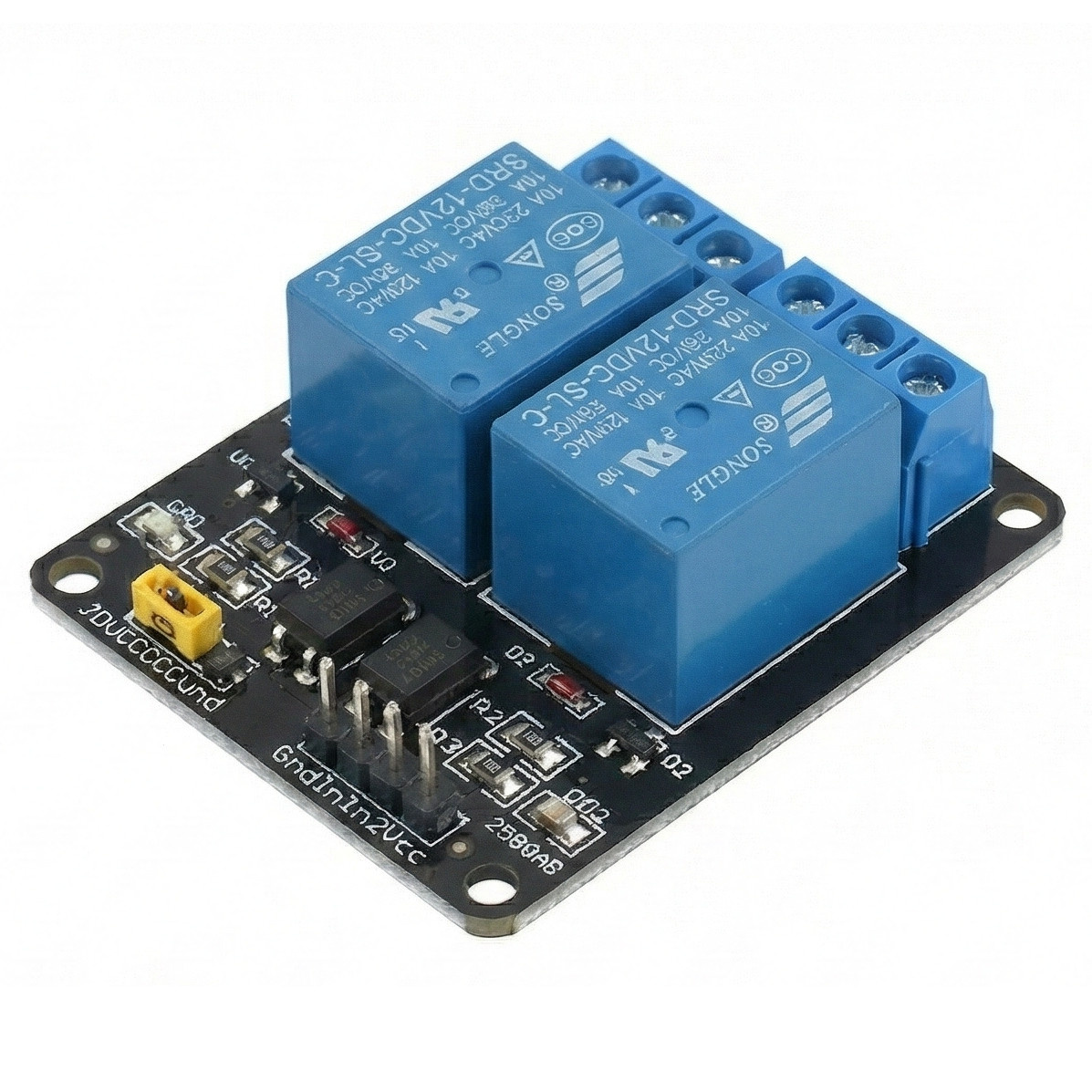

2 Channel Relay module
Description
This is a 5V 2 Channel Relay Module, be able to control various appliances, and other equipment with large current. It can be controlled directly by Microcontroller (8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).5V 2-Channel Relay interface board and each one needs 15-20mA Driver Current Equipped with high-current relay, AC250V 10A; DC30V 10A Standard interface that can be controlled directly by microcontroller (8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic) Indication LED’s for Relay output status.
Manufacturer Details
| Manufacturer | Part Number |
|---|---|
| Songle | SRD-05VDC-SL-C |
| Keyes | KY-019 |
| SunFounder | SF-2Relay |
| Elegoo | ELG-2RELAY |
| Generic | 2CH-Relay-5V |
Vendor Suppliers
| Vendor | SKU | Link |
|---|---|---|
| No listings | ||
Application Resources
Project Codes
No project codes.
Technical Specifications
| No. of Channels | 2 |
| Operating Temperature Range | -40 to 85 °C |
| Operating Voltage | 2.5 ~ 5.5 V (DC) |
| Switching Voltage(AC) | 240V@10A |
| Switching Voltage(DC) | 30V@10A |
| Trigger Current | 20 mA |
| Trigger Voltage | 5V (DC) |
| Length | 4.3 cm |
| Height | 1.7 cm |
| Width | 4.3 cm |
