EDT-00005-A
(Last updated) Jun 04, 2026

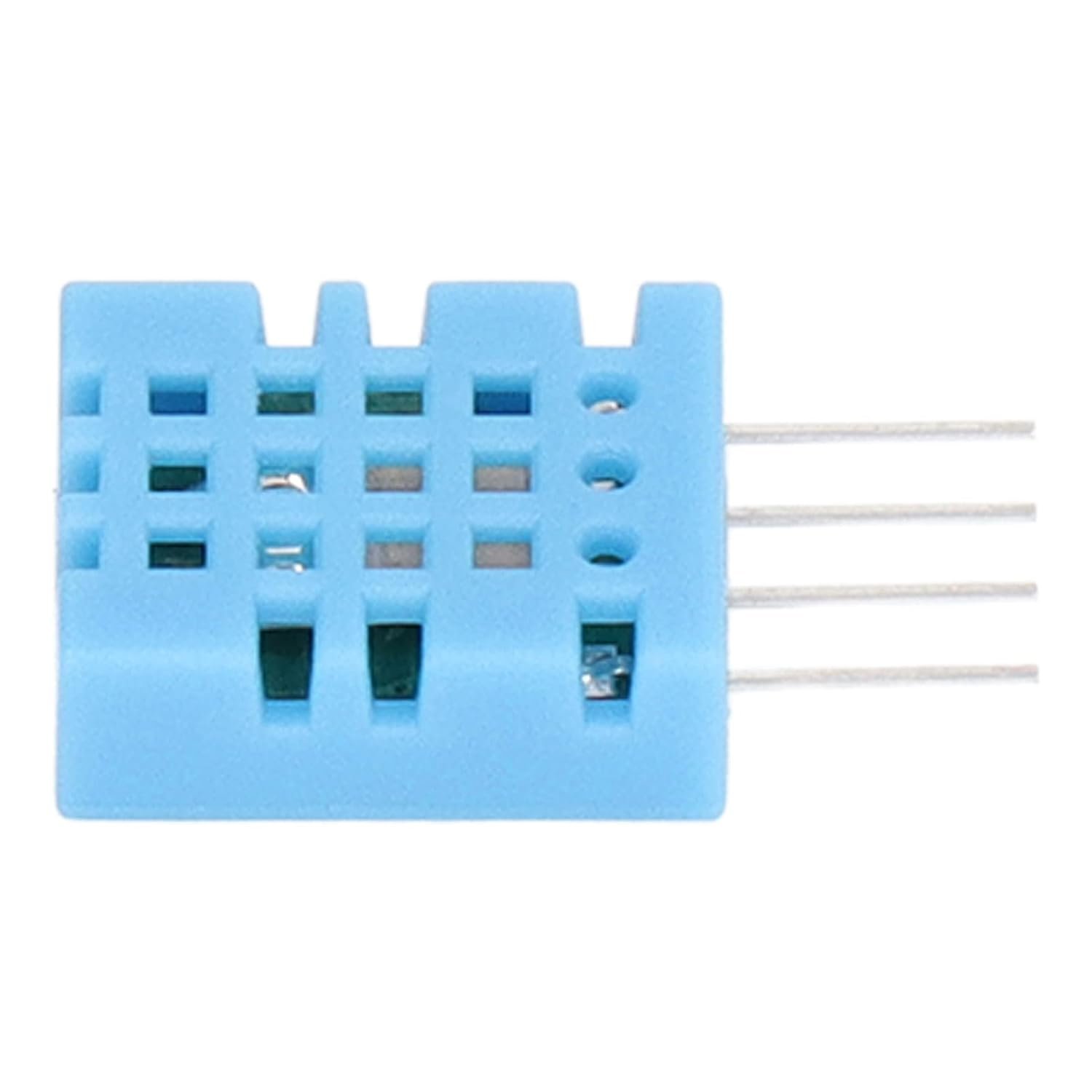

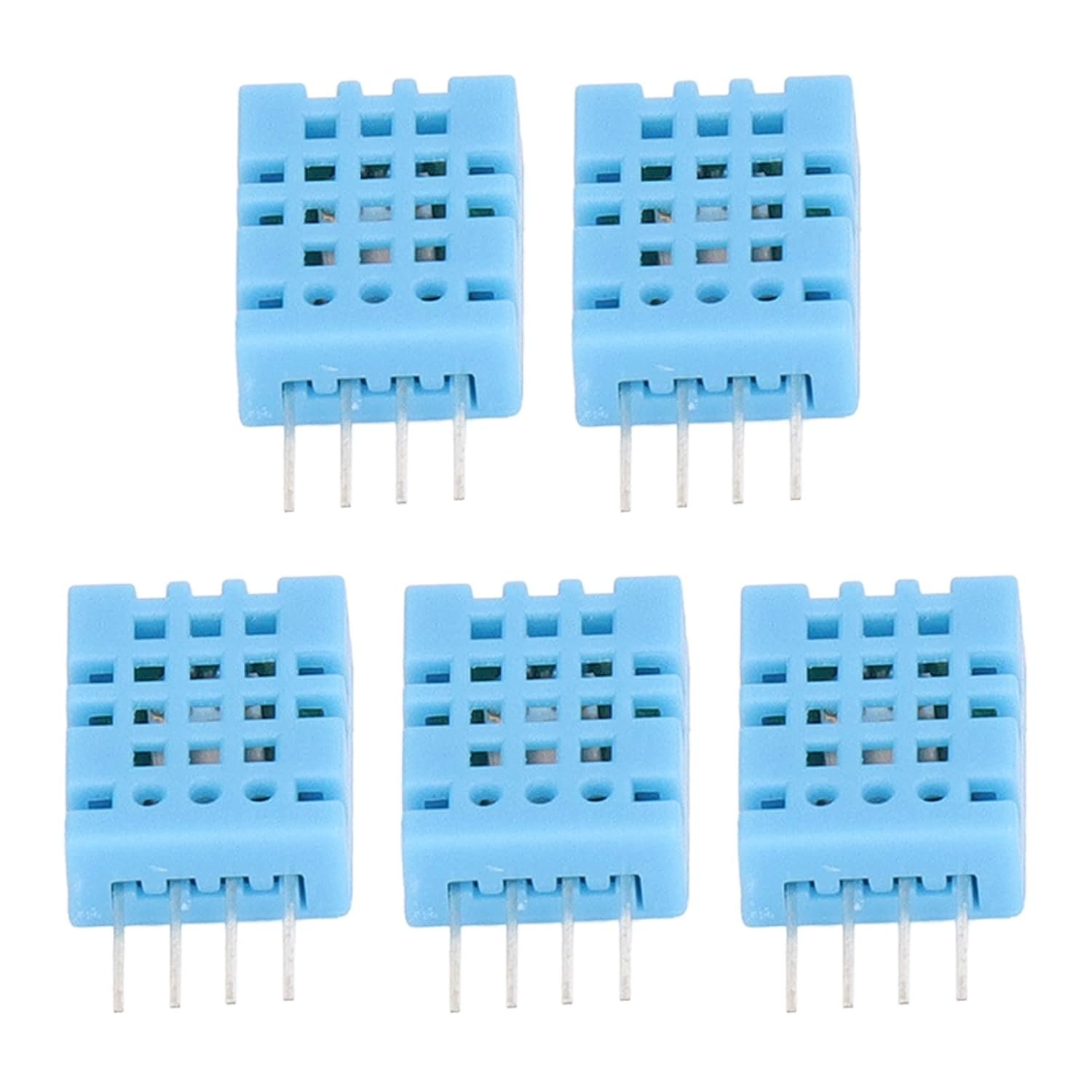

Humidity Device
Humidity Sensor Device
Category
Subcategory
EDT - Electronic Device Transducer
Description
Digital humidity sensor device used for measuring relative humidity and environmental moisture levels in air for IoT, automation, weather monitoring, and embedded electronics projects.
Manufacturer Details
| Manufacturer | Part Number |
|---|---|
| Aosong Electronics | DHT11 |
| Aosong Electronics | DHT22 / AM2302 |
| Bosch | BME280 |
| Sensirion | SHT31 |
Application Resources
No application resources.
Technical Specifications
| Operating Voltage | 3.3V – 5V |
| Humidity Range | 0% – 100% RH |
| Humidity Accuracy | ±2% RH to ±5% RH |
| Operating Temperature | -40°C to +125°C |
Related Components in ED - Electronic Device
ED - Electronic Device
EDT-00009-A
Active buzzer module with internal oscillator
Active buzzer module
Category: ED - Electronic Device
ED - Electronic Device
EDM-00009-A
PCB board
PCB prototype board
Category: ED - Electronic Device
ED - Electronic Device
EDR-00001-10K0
Resistor - 10K Ohm
0.25W Resistor - 10K Ohm
Category: ED - Electronic Device
ED - Electronic Device
EDR-00002-20K0

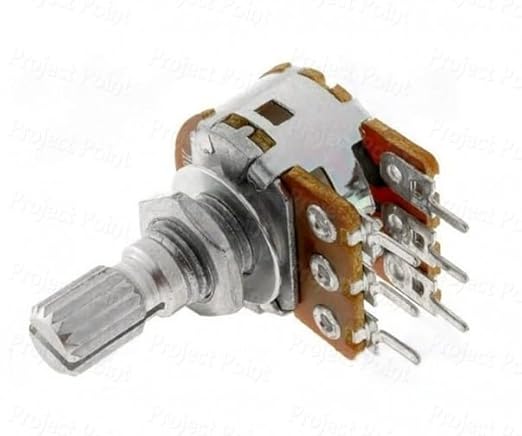

Potentiometer
