EDM-00006-B
(Last updated) Jun 05, 2026
Headers
90 degree Headers
Category
Subcategory
EDM - Mechanical: Connectors, pins, Fuse, Switches, Keys, BlanK PCB
Description

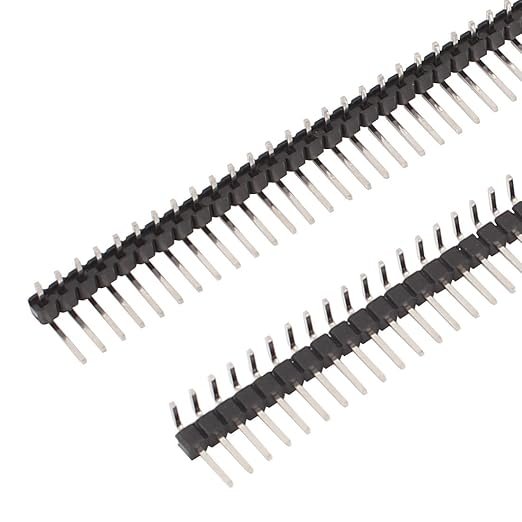

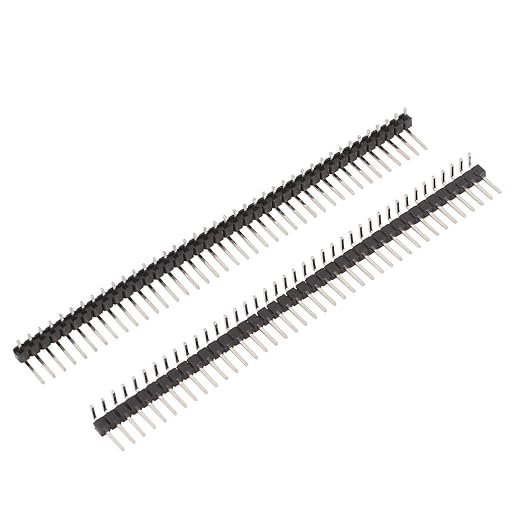

90 degree (right angle) header pins designed for PCB mounting and board-to-wire or board-to-board connections in electronic circuits. These connectors allow horizontal cable attachment, making them ideal for compact PCB layouts, Arduino shields, embedded systems, and robotics applications.
Vendor Suppliers
Application Resources
No application resources.
Technical Specifications
| Connector Type | Right Angle Pin Header (90°) |
| Pin Pitch | 2.54mm (Standard) |
| Pin Count | 1x1 to multi-pin strips |
