EDM-00007-A
(Last updated) May 19, 2026
Female Headers
Female Socket Headers
Category
Subcategory
EDM - Mechanical: Connectors, pins, Fuse, Switches, Keys, BlanK PCB
Description

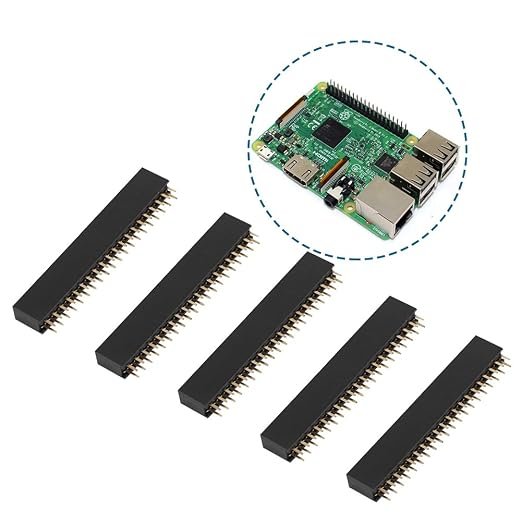

It is a 2×40 Pin Female Double Row Header Strip. It has two rows of 40 pins each. Ideal for through-hole mounting.
Manufacturer Details
| Manufacturer | Part Number |
|---|---|
| Samtec | SSW-140-02-G-S |
| Amphenol | 68000-140HLF |
| Harwin | M20-7824046 |
| TE Connectivity | 5-146280-4 |
| Molex | 22-28-4400 |
Application Resources
Technical Specifications
| Pitch Size | 2.54mm (0.1 Inch) |
| Connector Type | Female Header Socket |
| Number of Pins | 40 Pins |
| Mounting Type | Through Hole |
| Current Rating | 3A Typical |
