Name: 7 Segment Display, 1 digit device
Brand: Generic
SKU: EDD-00004-B
Availability: InStock

(Last updated) Jun 04, 2026

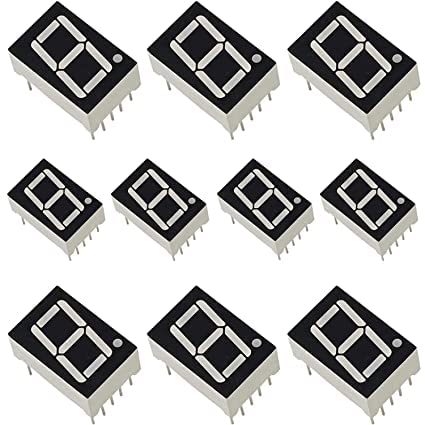

7 Segment Display, 1 digit device

7 Segment Display (Common Anode)

Description

Single digit common anode 7 segment LED display device designed for numeric indication in embedded systems, counters, timers, clocks, measurement instruments, and electronics projects. It provides bright numeric visualization with low power consumption and simple interfacing using microcontrollers and digital logic circuits. Commonly used in Arduino projects, digital counters, calculators, industrial control panels, and educational electronics applications.

Manufacturer Details

Manufacturer	Part Number
Kingbright	SC56-11EWA
Lite-On	LTS-546AP
Everlight	ELS-321SURWA
Broadcom	HDSP-5501

Vendor Suppliers

Amazon ( india ) Amazon ( Japan ) Amazon ( USA ) Amazon ( canada ) Robu.in ( India ) FlyRobo ( India )

Application Resources

No application resources.

Technical Specifications

Display Type	1 Digit 7 Segment LED Display
Configuration	Common Anode
Operating Voltage	1.8V – 2.2V per Segment
Number of Pins	10 Pins
Digit Height	0.36 Inch – 0.56 Inch
