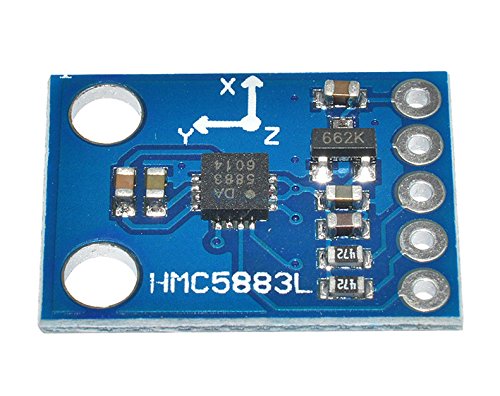

Magnetometer Module
Magnetometer Module
Magnetometer Module thumbnail
Magnetometer Module thumbnail

Technical Documents

HMC5883L 3-Axis Electronic Compass Module

Application Resources

GY-271 HMC5883L 3 Axis Compass Magnetometer Module

EMS-00026-A

(Last updated) Jun 20, 2026

Magnetometer Module

Triple Axis Compass Magnetomete Sensor

Subcategory
EMS - Input: Sensors

Description

The HMC5883L Triple Axis Compass Magnetometer Module is a 3-axis digital compass sensor used in navigation, robotics, drones, GPS systems, and Arduino projects. It communicates via I2C and measures magnetic field strength along the X, Y, and Z axes. It provides accurate heading and orientation data for motion tracking and autonomous applications.

Manufacturer Details

Manufacturer Part Number
Honeywell HMC5883L
ITEAD Studio IM130918001
DFRobot SEN0079
Adafruit 1746
SparkFun SEN-10530

Technical Specifications

Product Type Triple Axis Magnetometer
Sensor Model HMC5883L
Number of Axes 3 Axis
Communication Interface I2C
Operating Voltage 3.3V – 5V
ADC Resolution 12-bit
