Flammable Gas Sensor

EMS-00010-E

(Last updated) May 18, 2026

Flammable Gas Sensor

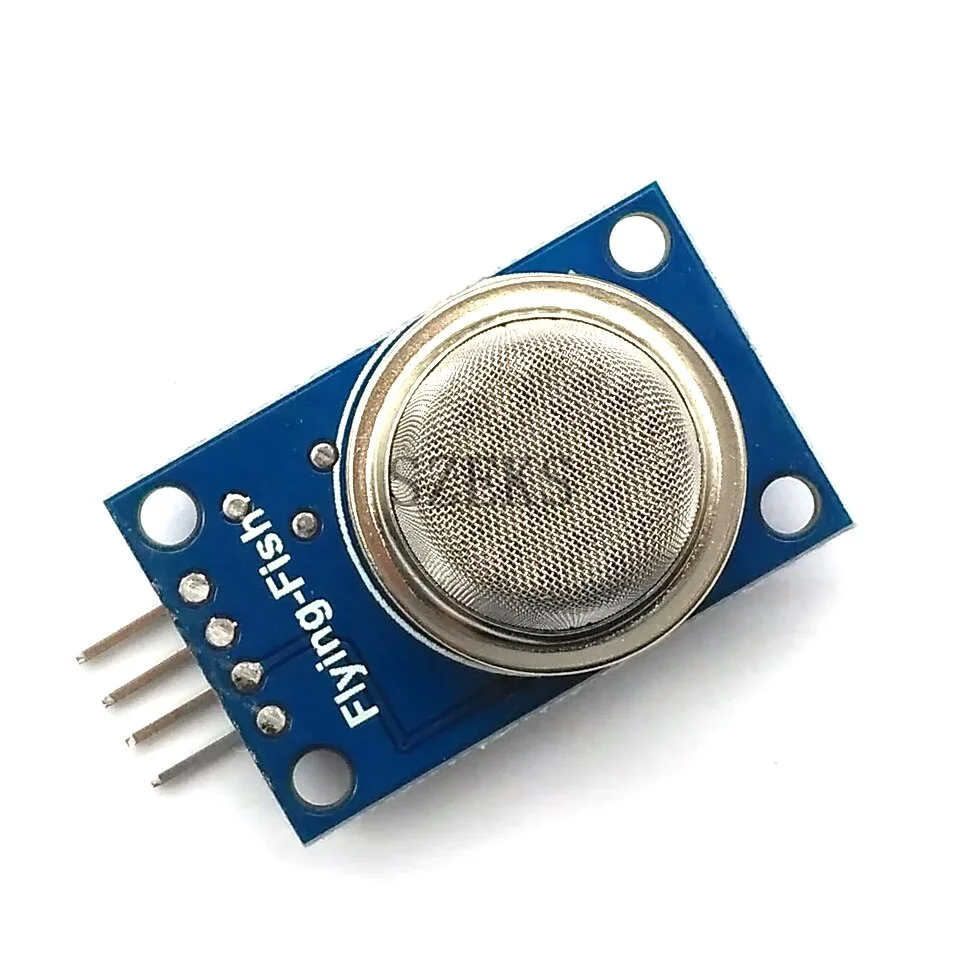

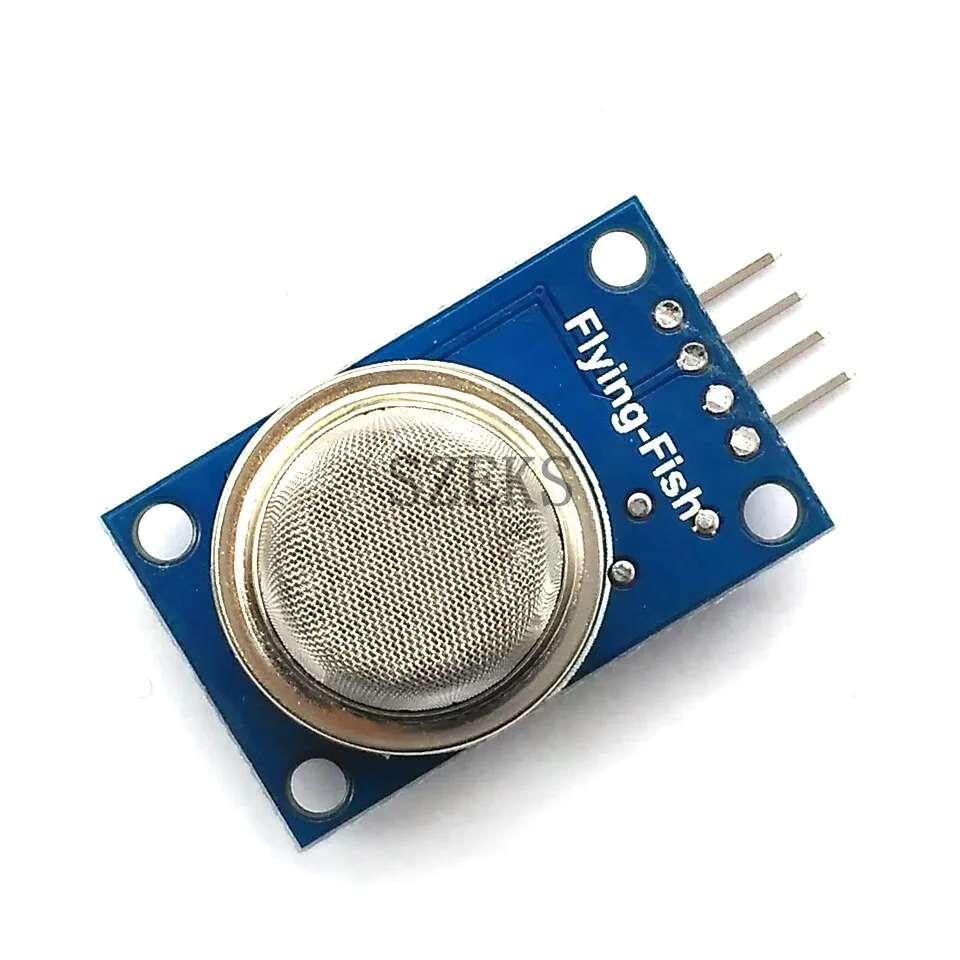

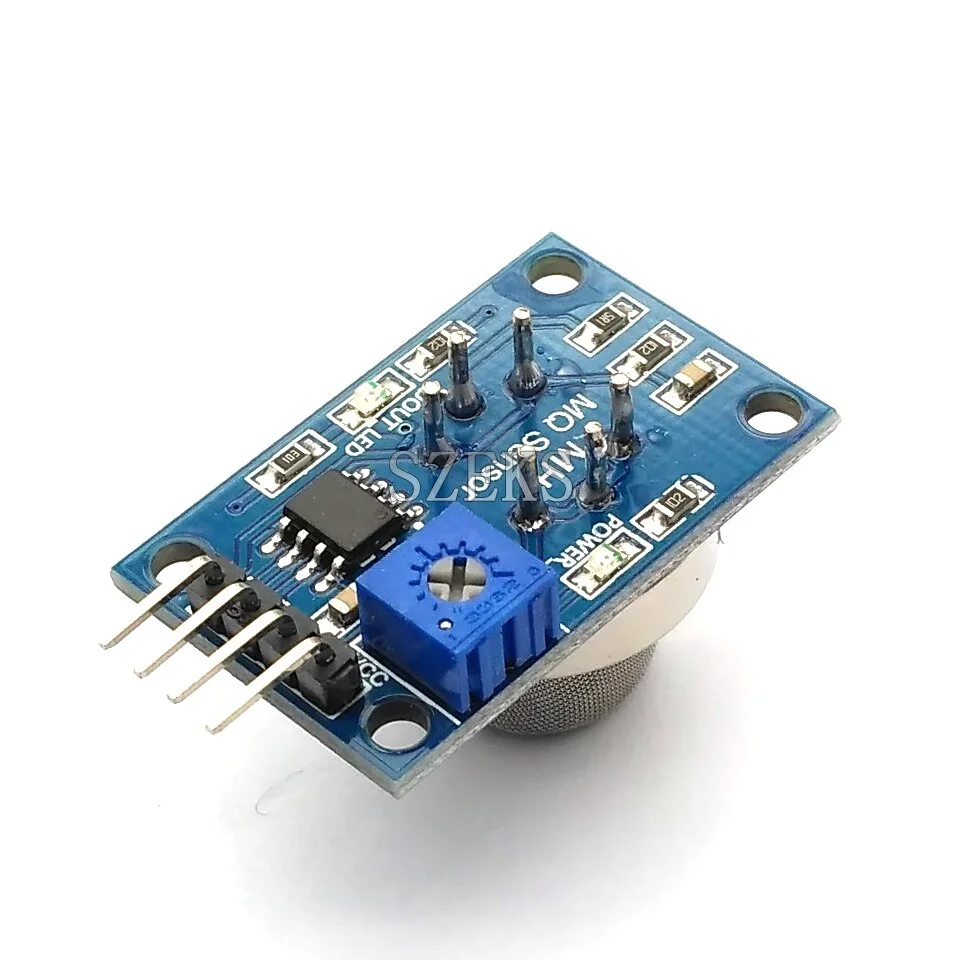

MQ-6 LPG Gas Sensor Module

Subcategory
EMS - Input: Sensors

Description

This is a simple-to-use MQ-6 Liquefied Petroleum Isobutane Propane Gas Sensor module, suitable for sensing LPG (composed of mostly propane and butane) concentrations in the air. The MQ-6 can detect gas concentrations anywhere from 200 to 10000ppm. This sensor has high sensitivity and fast response time. The sensor’s output is an analog resistance. The drive circuit is very simple; all you need to do is power the heater coil with 5V, add a load resistance, and connect the output to an ADC. The sensitive material of the MQ-6 gas sensor is SnO2, which with lower conductivity in clean air. When the target combustible gas exists, The sensor’s conductivity is higher along with the gas concentration rising. Please use a simple electro circuit, Convert change of conductivity to the corresponding output signal of gas concentration.

Manufacturer Details

Manufacturer Part Number
Hanwei Electronics MQ-6
Zhengzhou Winsen Electronics MQ-6
DFRobot MQ-6

Application Resources

Gas Sensor Module/ Device MQ-6 LPG Gas Sensor Module MQ6-LPG Sensor Module

Technical Specifications

Model MQ-6
Operating Temperature Range -20 to 40 °C
Operating Voltage 5 V
Length 3.2 cm
Height 2.2 cm
Width 2 cm
