EMS-00015-B

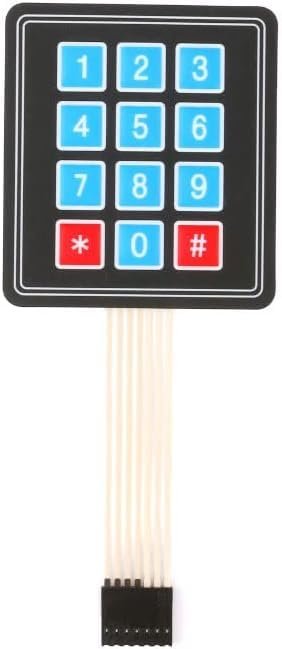

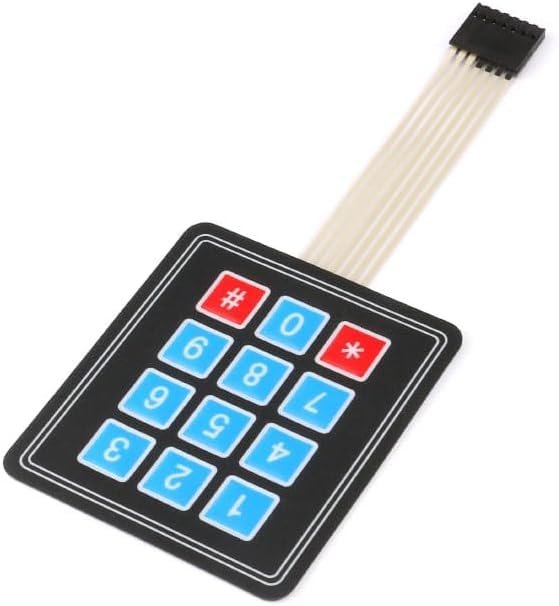

3x4 Membrane switch keypad
membrane switch keypad
Description
Manufacturer Details
| Manufacturer | Part Number |
|---|---|
| Adafruit | PID 1824 |
| DFRobot | DFR0792 |
| SparkFun | COM-14662 |
| Keyestudio | KS0212 |
Application Resources
Technical Specifications
| Product Type | Membrane Matrix Keypad |
| Key Layout | 3×4 Matrix |
| Number of Keys | 12 |
| Operating Voltage | 3V – 35V DC |

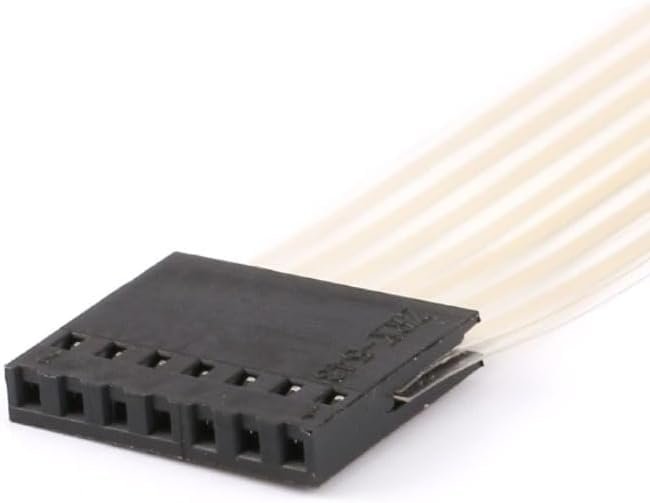

| Connector Type | 7-pin Header |
