Temperature sensor Module

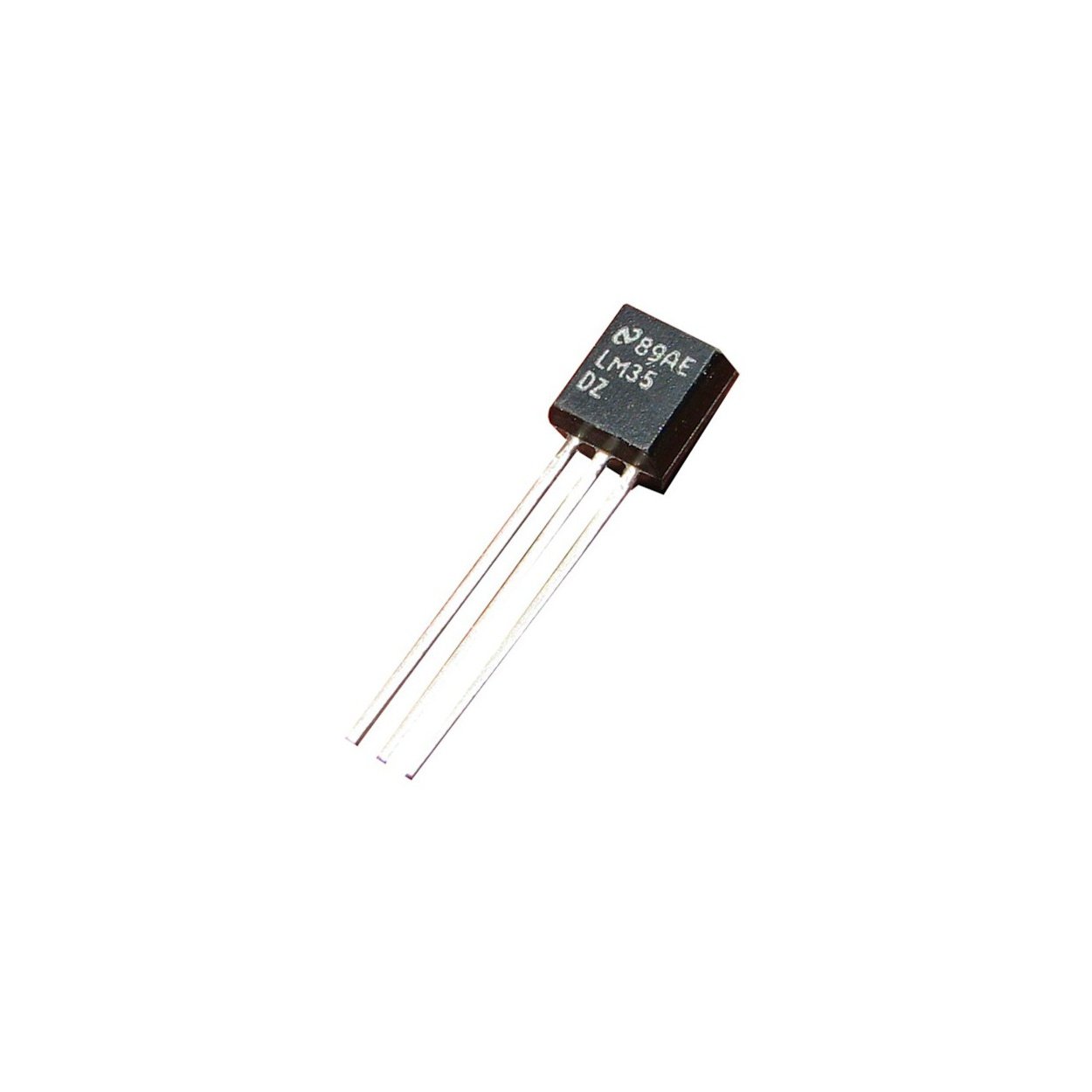

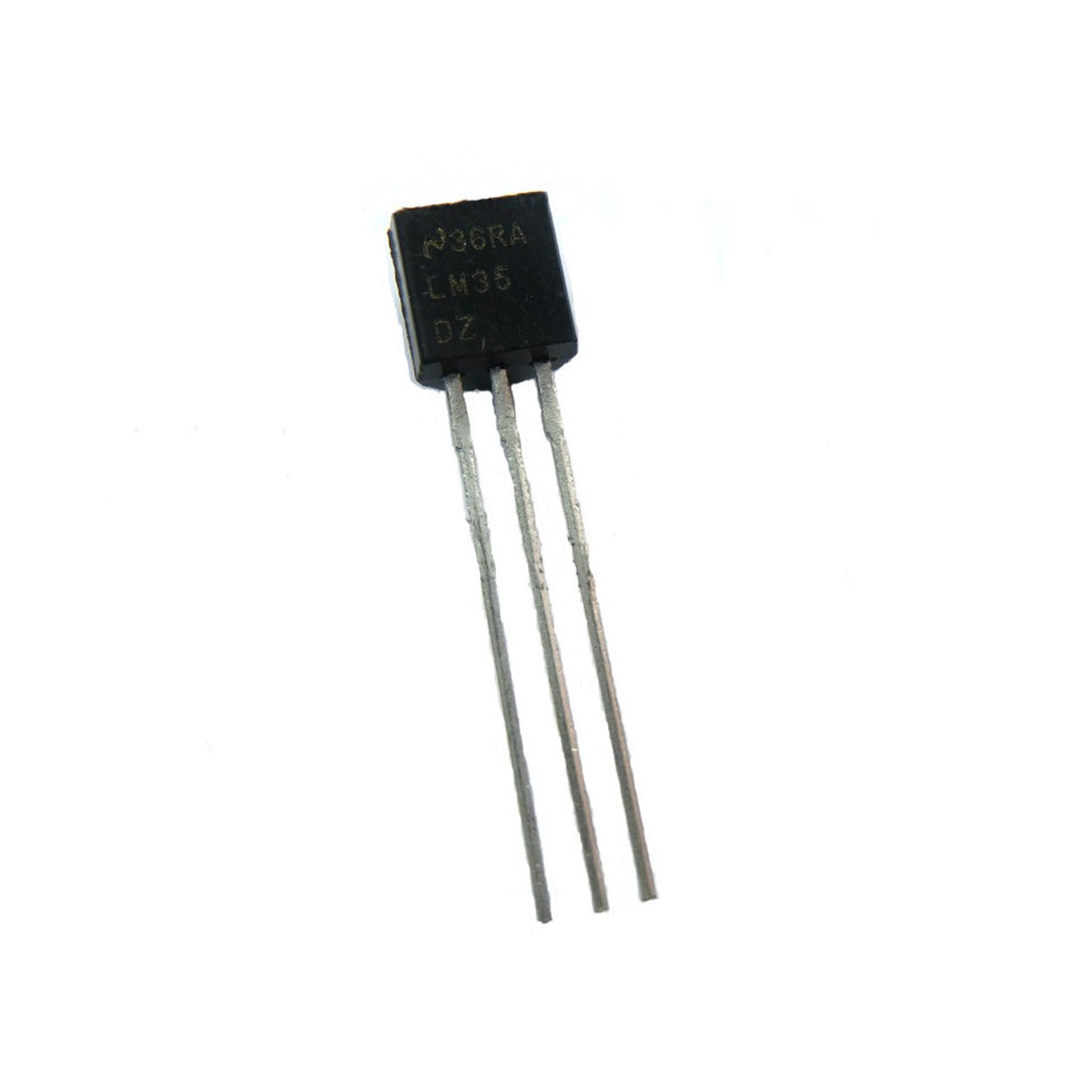

Temperature sensor Module -LM35

Subcategory
EDS - Integrated Semiconductors: Chips (with more than a transistor)

Description

LM35 temperature sensor module designed for accurate analog temperature measurement in electronic circuits, embedded systems, and IoT applications. It provides a linear voltage output proportional to temperature in Celsius, making it easy to interface with microcontrollers like Arduino. Commonly used in weather monitoring systems, robotics, industrial temperature control, and educational electronics projects.

Manufacturer Details

Manufacturer Part Number
Texas Instruments LM35DZ
National Semiconductor LM35
STMicroelectronics LM35 Series

Application Resources

No application resources.

Technical Specifications

Sensor Type Analog Temperature Sensor
Output Linear Analog Voltage (10mV/°C)
Operating Voltage 4V – 30V
Temperature Range 0°C to 100°C (typical)

Related Components in ED - Electronic Device

ED - Electronic Device

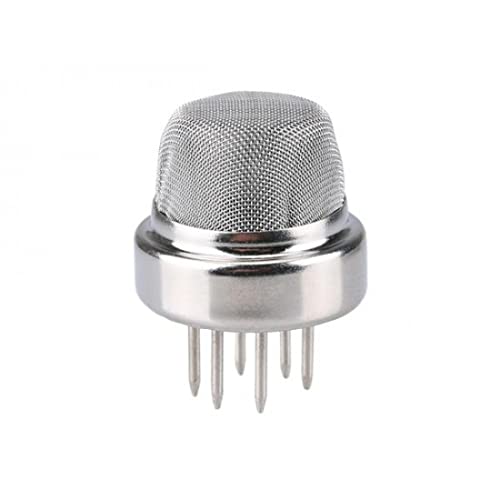

Gas Sensor Device

EDT-00001-D

Gas Sensor Device

Gas Sensor Device- Natural gas, LPG

Category: ED - Electronic Device

(Last updated) Jun 05, 2026
ED - Electronic Device
Resistor - 470 Ohm

EDR-00001-470Z

Resistor - 470 Ohm

0.25W Resistor - 470 Ohm

Category: ED - Electronic Device

(Last updated) May 09, 2026
ED - Electronic Device

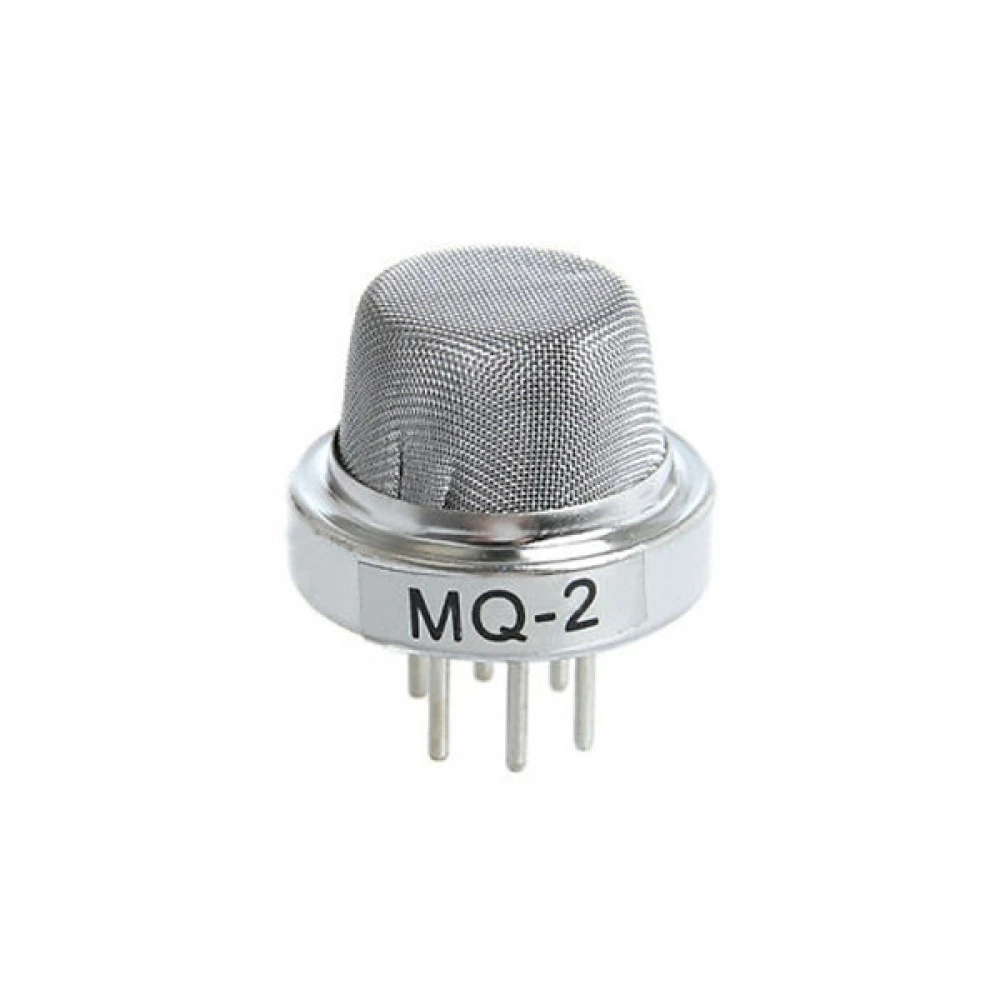

Gas Sensor Device
