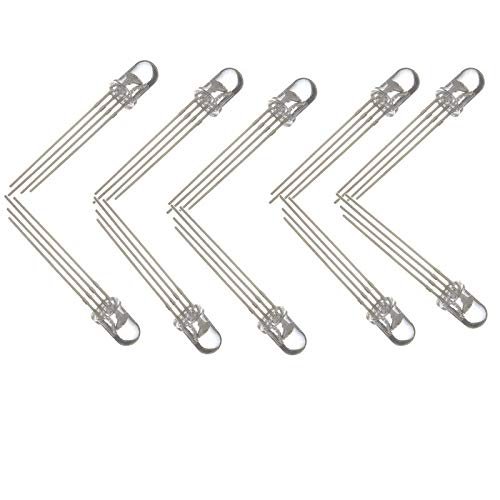

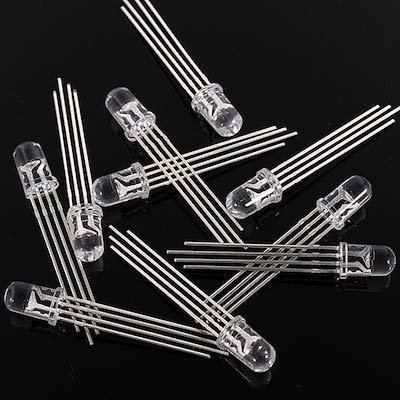

RGB Multi-Color LED Module

RGB Module (Common Anode)

Description

5mm high-brightness RGB LED with common anode configuration. Emits red, green, and blue light for color mixing and display applications. Ideal for indicators, Arduino projects, decorative lighting, and DIY electronics.

Manufacturer Details

Manufacturer	Part Number
Jameco ValuePro	RGB LED CA‑10
Jameco ValuePro	MCDL‑5013RGBC‑TL‑A
Adafruit Industries	2530

Vendor Suppliers

Amazon ( india ) Amazon ( Japan ) Amazon ( USA ) Amazon ( canada ) Robu.in ( India ) FlyRobo ( India )

Application Resources

RGB LED Basics & Working Demo

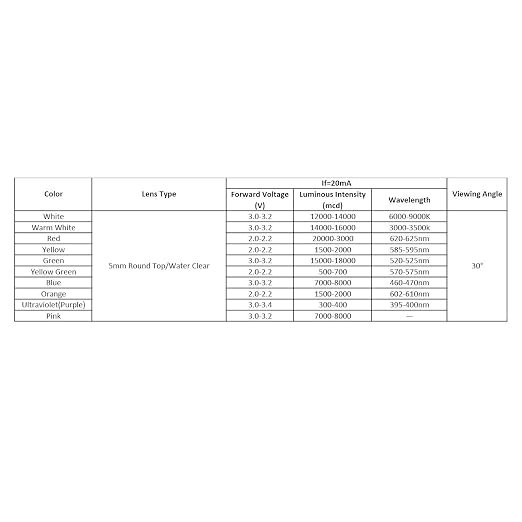

Technical Specifications

Manufacturer	Generic
Model Type	Common Anode RGB LED
Package	5mm Round (Clear Lens)
Color	Red, Green, Blue
Configuration	Common Anode
Brightness	High
Current Consumption	Low
Operating Voltage	2.0–3.2V (per color)
Forward Current (mA)	20 (per channel)
Power Efficiency	High Luminous Output, Low Heat
Material	Epoxy Resin, Gold Wire Leads
Mounting Type	Through Hole
Item Size	5mm
Shipping Weight	0.001 kg
Shipping Dimensions (L × W × H)	1 × 1 × 1 cm
